Product Details:
|
| Panel Brand: | SHARP | Panel Model: | LQ080T3AG01 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 8.0 Inch |
| Resolution: | 480(RGB)×234 | Display Mode: | TN, Normally White, Transmissive |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
LQ080T3AG01 8.0 inch tft lcd panel LCM 480×234 350 Full color CCFL Analog
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
LQ080T3AG01 Detail
| Panel Brand : | SHARP | ||
| Panel Model : |
|
||
| Panel Type : | a-Si TFT-LCD , LCM | ||
| Panel Size : | 8.0 inch | ||
|
|
||
| Display Mode : | TN, Normally White, Transmissive | ||
| Active Area : | 176.4×99.22 mm | ||
| Outline : | 196.7×117.8 mm | ||
| Surface : | |||
| Brightness : |
|
||
| Contrast Ratio : | 60:1 (Min.) | ||
| Display Colors : |
|
||
| Response Time : | 30/50 (Typ.)(Tr/Td) | ||
|
65/65/55/65 (Typ.)(CR≥10) (L/R/U/D) | ||
| Lamp Type : | 1 pcs CCFL Embedded (Inverter) | ||
|
Analog RGB + Composite Video (NTSC/PAL) , 24 pins | ||
| Input Voltage : | 12.0V (Typ.) |
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.
| Panel Size : | 8.0 inch | ||
| Dot Resolution : |
|
||
| Pixel Configuration : | RGB Vertical Stripe | ||
| Pixel Density : | 67 PPI | ||
|
|
||
| Form Factor : | Flat Rectangle Display | ||
| Dot Pitch : | 0.1225×0.4240 mm (H×V) | ||
| Pixel Pitch : | 0.3675×0.4240 mm (H×V) | ||
| Weight : | 400g (Max>0 | ||
| Active Area : |
|
||
| Outline Dimension : | 196.7×117.8 mm (H×V) | ||
| Outline Depth : |
|
||
| Landscape or Portrait : | Landscape type | ||
|
Without | ||
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |

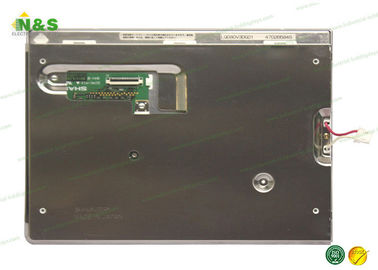

LQ080T3AG01 Picture
