Product Details:
|
| Panel Brand: | SHARP | Panel Model: | LQ072K1LA03 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 7.2 Inch |
| Resolution: | 1280(RGB)×768 , WXGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
Hard coating LQ072K1LA03 Sharp LCD Panel 7.2 inch Normally White
LQ072K1LA03 Detail
| Panel Brand : | SHARP | ||
| Panel Model : |
|
||
| Panel Type : | a-Si TFT-LCD , LCM | ||
| Panel Size : | 7.2 inch | ||
|
|
||
| Display Mode : | TN, Normally White, Transmissive | ||
| Active Area : | 157.44×94.464 mm | ||
| Outline : | 185×115.9 mm | ||
| Surface : | Glare (Haze 0%), Hard coating (2H), Antireflection | ||
| Brightness : |
|
||
| Contrast Ratio : | 150:1 (Min.) | ||
| Display Colors : |
|
||
| Response Time : | 45 (Typ.)(Tr+Td) | ||
|
60/60/45/60 (Typ.)(CR≥10) (L/R/U/D) | ||
| Lamp Type : | 8S4P WLED Without Driver | ||
|
LVDS (1 ch, 6-bit) , 14 pins | ||
| Input Voltage : | 3.3V (Typ.) |
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
| Panel Size : | 7.2 inch | ||
| Dot Resolution : |
|
||
| Pixel Configuration : | RGB Vertical Stripe | ||
| Pixel Density : | 206 PPI | ||
|
|
||
| Form Factor : | Flat Rectangle Display | ||
| Dot Pitch : | 0.041×0.123 mm (H×V) | ||
| Pixel Pitch : | 0.123×0.123 mm (H×V) | ||
| Weight : | 140/155g (Typ./Max.) | ||
| Surface : |
|
||
| Active Area : | 157.44×94.464 mm (H×V) | ||
| Bezel Area : |
|
||
| Outline Dimension : | 185×115.9 mm (H×V) | ||
|
7.5 (Max.) mm | ||
| Holes & Brackets : | Face mounting holes (4 pcs; on bracket) | ||
|
Landscape type | ||
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.

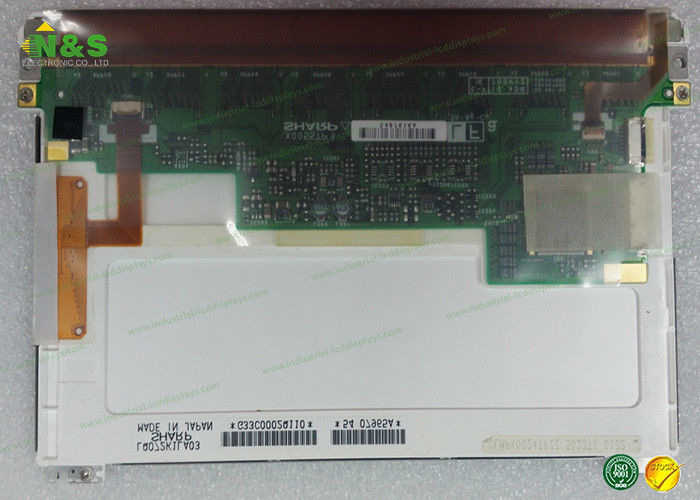

LQ072K1LA03 Picture
