Product Details:
|
| Panel Brand: | SHARP | Panel Model: | LQ070Y3DG02 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 7.0 Inch |
| Resolution: | 800(RGB)×480 , WVGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
LQ070Y3DG02 Sharp LCD Panel 7.0 inch LCM 800×480 280 450:1 16.7M WLED TTL
LQ070Y3DG02 Specification
| Panel Brand : | SHARP | ||
| Panel Model : |
|
||
| Panel Type : | a-Si TFT-LCD , LCM | ||
| Panel Size : | 7.0 inch | ||
|
|
||
| Display Mode : | TN, Normally White, Transmissive | ||
| Active Area : | 152.4×91.44 mm | ||
| Outline : | 164.9×104×5.3 mm | ||
| Surface : | Antiglare, Hard coating (3H) | ||
| Brightness : |
|
||
| Contrast Ratio : | 450:1 (Typ.) | ||
| Display Colors : |
|
||
| Response Time : | 35 (Typ.)(Tr+Td) | ||
| Viewing Angle : | 65/65/50/60 (Typ.)(CR≥10) (L/R/U/D) | ||
| Frequency : | 60Hz | ||
|
8S3P WLED Without Driver | ||
| Signal Interface : | Parallel RGB (1 ch, 8-bit) , 51 pins | ||
|
1.8/2.85V (Typ.)(VDDIO/VCI) |
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| Panel Size : | 7.0 inch | ||
| Dot Resolution : |
|
||
| Pixel Configuration : | RGB Horizontal Stripe | ||
| Pixel Density : | 133 PPI | ||
|
|
||
| Form Factor : | Flat Rectangle Display | ||
| Dot Pitch : | 0.1905×0.0635 mm (H×V) | ||
| Pixel Pitch : | 0.1905×0.1905 mm (H×V) | ||
| Weight : | 160/175g (Typ./Max.) | ||
| Surface : |
|
||
| Active Area : | 152.4×91.44 mm (H×V) | ||
| Outline Dimension : |
|
||
| Outline Depth : | 5.0/5.3 (Typ./Max.) mm | ||
| Holes & Brackets : | Without | ||
| Landscape or Portrait : | Landscape type | ||
|
Embeded (4-wire Resistive) |
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.

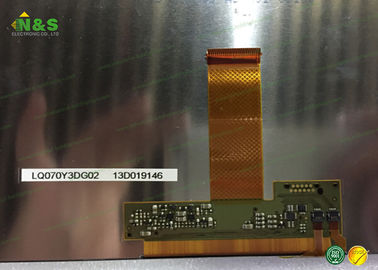

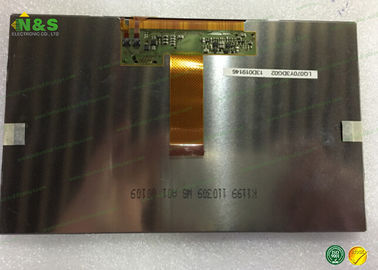

LQ070Y3DG02 Picture
