LQ070T5GG06 Sharp LCD Panel 7.0 inch LCM 480×234 500 100:1 Full color CCFL Analog

LQ070T5GG06 Sharp LCD Panel 7.0 inch LCM 480×234 500 100:1 Full color CCFL Analog

LQ070T5GG06  Specification

Panel Brand :	SHARP
Panel Model :	LQ070T5GG06
Panel Type :	a-Si TFT-LCD , LCM
Panel Size :	7.0 inch
Resolution :	480(RGB)×234
Display Mode :	TN, Normally White, Transmissive
Active Area :	156.24×82.368 mm
Outline :	167×93×12.1 mm
Surface :
Brightness :	500 cd/m² (Typ.)
Contrast Ratio :	100:1 (Min.)
Display Colors :	Full color
Response Time :	30/50 (Typ.)(Tr/Td)
Viewing Angle :	65/65/50/65 (Typ.)(CR≥10) (L/R/U/D)
Frequency :	60Hz

Our Company Strength in LCD Screen Sourcing:

1. ISO9001 certificated, Factory Direct Supplied
2. Competitive Price and Short Lead-time
3. Professional Team with Rich Experiences in LCD screen international trade communication.
4. Small MOQ Support & Fast Response to Customers
5. Long Product Life Time
6. 1 Year warranty for our LCD screen replacements.

Panel Size :	7.0 ich
Dot Resolution :	480(RGB)×234
Pixel Configuration :	RGB Vertical Stripe
Pixel Density :	76 PPI
Aspect Ratio :	17:9 (H:V)
Form Factor :	Flat Rectangle Display
Dot Pitch :	0.1085×0.3520 mm (H×V)
Pixel Pitch :	0.3255×0.3520 mm (H×V)
Weight :	185g
Active Area :	156.24×82.368 mm (H×V)
Outline Dimension :	167×93 mm (H×V)
Outline Depth :	6.9/12.1 (Typ./Max.) mm
Holes & Brackets :	Side mounting holes (4-Φ2.35)
Landscape or Portrait :	Landscape type
Touch Panel :	Without

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Packaging & Delivery

· Delivery Lead Time :2~3 weeks

· Minimum Order :1 pcs LCD Panel

· Supply Ability :100 PCS / Per Day

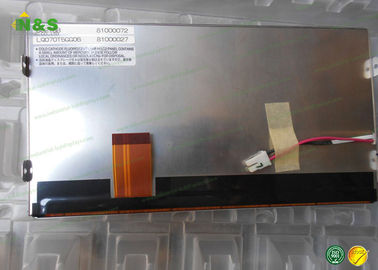

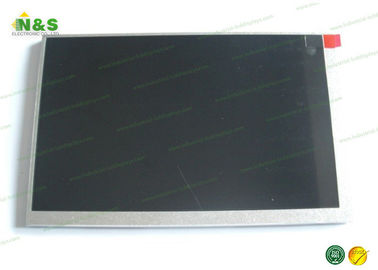

LQ070T5GG06 Picture
