LQ070T5GG01 Normally White Sharp LCD Panel 7.0 inch LCM 480×234 400 60:1 Full color CCFL Analog

LQ070T5GG01 Normally White Sharp LCD Panel 7.0 inch LCM 480×234 400 60:1 Full color CCFL Analog

Our Promise for our LCD Panels:

You will get reply within 24 Hours and:

ΠYear warranty

ΠDay shipping

‹ Return

LQ070T5GG01 Detail

Panel Brand :	SHARP
Panel Model :	LQ070T5GG01
Panel Type :	a-Si TFT-LCD , LCM
Panel Size :	7.0 inch
Resolution :	480(RGB)×234
Display Mode :	TN, Normally White, Transmissive
Active Area :	154.08×87.05 mm
Outline :	166×102 mm
Surface :	Antiglare, Antireflection
Brightness :	400 cd/m² (Typ.)
Contrast Ratio :	60:1 (Min.)
Display Colors :	Full color
Response Time :	30/50 (Typ.)(Tr/Td)
Viewing Angle :	65/65/40/65 (Typ.)(CR≥5) (L/R/U/D)
Frequency :	60Hz
Lamp Type :	2 pcs CCFL Without Driver
Signal Interface :	TFT Specific Analog RGB , 32 pins
Input Voltage :	5/13/-10/-12/-17V (Typ.)(VSH/VGH/VGL/VCC/VSS

Quality Control:

1. Visual Inspection

Make sure No damage, No Scratches, No dusty, No light leakage.

1. Function Inspection

Make sure all functions are 100% tested ok

Panel Size :	7.0 inch
Dot Resolution :	480(RGB)×234
Pixel Configuration :	RGB Vertical Stripe
Pixel Density :	76 PPI
Aspect Ratio :	16:9 (H:V)
Form Factor :	Flat Rectangle Display
Dot Pitch :	0.107×0.372 mm (H×V)
Pixel Pitch :	0.321×0.372 mm (H×V)
Weight :	205g (Max.)
Surface :	Antiglare, Antireflection
Active Area :	154.08×87.05 mm (H×V)
Outline Dimension :	166×102 mm (H×V)
Outline Depth :	7.5 (Typ.) mm
Landscape or Portrait :	Landscape type
Touch Panel :	Without

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

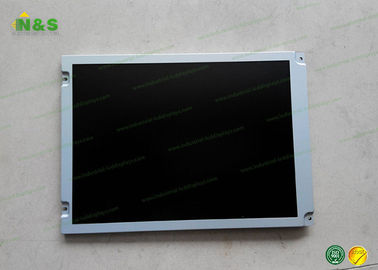

LQ070T5GG01 Picture
