7.0 inch LQ070T5DR06 Sharp LCD Panel Normally White with 154.08×87 mm

7.0 inch LQ070T5DR06 Sharp LCD Panel Normally White with 154.08×87 mm

LQ070T5DR06  Specification

Panel Brand :	SHARP
Panel Model :	LQ070T5DR06
Panel Type :	a-Si TFT-LCD , LCM
Panel Size :	7.0 inch
Resolution :	480(RGB)×240 , WQVGA
Display Mode :	TN, Normally White, Transmissive
Active Area :	154.08×87 mm
Outline :	170.1×103.4 mm
Surface :	Antiglare, Antireflection
Brightness :	400 cd/m² (Typ.)
Contrast Ratio :	100:1 (Min.)
Display Colors :	262K (6-bit)
Response Time :	30/50 (Typ.)(Tr/Td)
Viewing Angle :	65/65/40/65 (Typ.)(CR≥5) (L/R/U/D)
Frequency :	60Hz
Lamp Type :	2 pcs CCFL Without Driver
Signal Interface :	Parallel RGB (1 ch, 6-bit) , 36 pins
Input Voltage :	5/10/-10V (Typ.)(VSH/VGH/VGL)

Our Advantages

• We can be your professional Agent & Sourcing Line for the Hard-to-find LCD screen replacements.
• 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
• Welcome small, medium & big quantity orders.
• 100% QC Inspection before Shipment.
• After-sales-service With 12 Months Warranty for our LCD panels.

Panel Size :	7.0 inch
Dot Resolution :	480(RGB)×240 (WQVGA)
Pixel Configuration :	RGB Vertical Stripe
Pixel Density :	77 PPI
Aspect Ratio :	16:9 (H:V)
Form Factor :	Flat Rectangle Display
Dot Pitch :	0.107×0.3625 mm (H×V)
Pixel Pitch :	0.321×0.3625 mm (H×V)
Weight :	295g (Max.)
Surface :	Antiglare, Antireflection
Active Area :	154.08×87 mm (H×V)
Bezel Area :	159.1×91.9 mm (H×V)
Outline Dimension :	170.1×103.4 mm (H×V)
Outline Depth :	15.2 (Typ.) mm
Holes & Brackets :	Rear mounting holes (4-Φ2.05)
Landscape or Portrait :	Landscape type
Touch Panel :	Without

FAQ

Q1: What's the quality of your Hard Disk?

A: Various brands for hard disk etc. We are available to meet your different requirements.

Q2: What is your return and refund policy?

A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.

Q4: How long is the lead time?

A: The lead time is about 2-3 working days after receipt of payment.

Q5: Do you accept sample order?

A:Yes, sample order is welcome.

Q6: How can I get the quotation?

A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

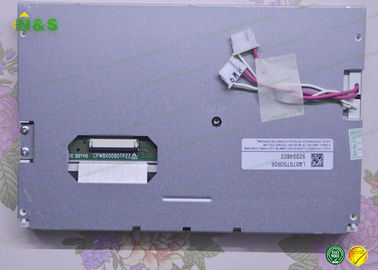

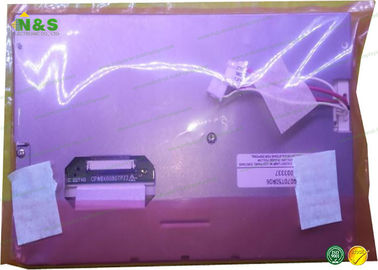

LQ070T5DR06 Picture
