Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 8.5 Inch |
|---|---|---|---|
| Resolution: | 480(RGB)×234 | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 187.2×105.3 Mm | Outline: | 199×119 Mm |
| High Light: | auo lcd screen,auo lcd display |
||

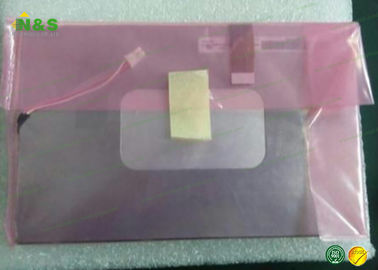

A085FW01 V4 8.5 inch LCM AUO LCD Panel 480×234 for Portable DVD player
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
After-sale Services:
1)warranty for 1 year, 7 days return for the non-working items, except broken, crashed cargo (Buyer pay for return shipping fee).
2)Please make sure the item is compatible for your model before ordering. No return for incompatible issues.
3)When you receive the item,if you find the box is break and the goods break. Please take photo about the goods and refuse accepting the goods .Please contact me and sent photo of product to me as soon as possible .I will complaint the delivery company.
We ensure offer great products, services and the most favorable prices. And we have a long-term and reliable supply. If you have any questions, suggestions or need any assistance, we are always here to give you quick response.
A085FW01 V4 Information
|
|
||
| Dot Resolution : | 480(RGB)×234 | ||
| Pixel Configuration : | RGB Vertical Stripe | ||
| Pixel Density : | 63 PPI | ||
| Aspect Ratio : | 16:9 (H:V) | ||
| Form Factor : | Flat Rectangle Display | ||
| Dot Pitch : | 0.130×0.450 mm (H×V) | ||
| Pixel Pitch : | 0.390×0.450 mm (H×V) | ||
| Weight : |
|
||
| Surface : | Antiglare | ||
| Active Area : | 187.2×105.3 mm (H×V) | ||
| Bezel Area : | 190.0×108.1 mm (H×V) | ||
| Outline Dimension : | 199×119 mm (H×V) | ||
| Outline Depth : | 5.8 (Typ.) mm | ||
| Landscape or Portrait : | Landscape type | ||
| Touch Panel : | Without | ||
| Brightness : | 250 cd/m² (Typ.) | ||
| Contrast Ratio : | 300 : 1 (Typ.) (Transmissive) | ||
| Response Time : | 12/18 (Typ.)(Tr/Td) | ||
| Viewing Angle : | 65/65/50/65 (Typ.)(CR≥10) (L/R/U/D) | ||
| Viewing Direction : | 6 o'clock | ||
| White color Chromaticity : | Wx:0.320; Wy:0.340 | ||
| Sunlight Readable : | N |
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| T500QVN03.0 CELL | AUO | 50" | 3840×2160 |
| H497DAN02.1 | AUO | 5.0" | 1080×1920 |
| H546DAN07.3 | AUO | 5.5" | 1080×1920 |
| M270HVN02.3 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.2 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.1 CELL | AUO | 27.0" | 1920×1080 |
