Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 7.0 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×600 , SVGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 152.4×91.44 Mm | Outline: | 165×104×5.7MM |
| High Light: | auo lcd screen,auo lcd display |
||

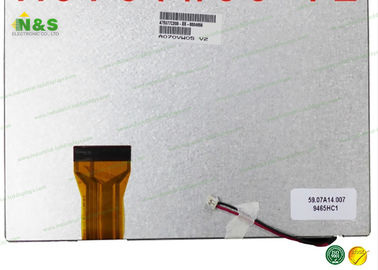

Normally White A070VW05 V2 AUO lcd panel display with 152.4×91.44 mm Active Area
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
A070VW05 V2 Information
| Panel Size : |
|
|
| Dot Resolution : | 800(RGB)×480 (WVGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 133 PPI | |
| Aspect Ratio : | 15:9 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.0635×0.1905 mm (H×V) | |
| Pixel Pitch : | 0.1905×0.1905 mm (H×V) | |
| Weight : |
|
|
| Surface : | Antiglare, Hard coating (3H) | |
| Active Area : | 152.4×91.44 mm (H×V) | |
| Bezel Area : | 154.4×93.44 mm (H×V) | |
| Outline Dimension : | 165×104 mm (H×V) | |
| Outline Depth : | 5.1±0.3 mm | |
| Holes & Brackets : | Without | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without | |
|
|
||
| Back to Top | ||
|
||
|
||
|
||
| Add to Compare | ||
| North American Sales | ||
| AUO A070VW05 V2 Optical Features | ||
|
|
||
| Display Mode : | TN, Normally White, Transmissive | |
| Brightness : | 375 cd/m² (Typ.) | |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) | |
| Display Color : | 16.7M (8-bit) | |
| Color Gamut : | 50% NTSC (CIE1931) | |
| Response Time : | 12/18 (Typ.)(Tr/Td) | |
| Viewing Angle : | 65/65/45/65 (Typ.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | 6 o'clock | |
| White color Chromaticity : | Wx:0.300; Wy:0.320 | |
| White Variation : |
|
|
| Sunlight Readable : | N |
To get the latest prices, pls feel free to contact us.
1. Samples charge: According to the model. Pls contact us to get details.
2. Samples time:1 day forstock models
Packing: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Shipping: Delivery will be arranged in 1-3 working days once received payment, and will use third parties delivery services or delivered as you request.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| T320HVN02.1 CELL | AUO | 31.5" | 1920×1080 |
| H497DAN02.1 | AUO | 5.0" | 1080×1920 |
| LC430EQL-SHA2 | LG Display | 43" | 3840×2160 |
| H546DAN07.3 | AUO | 5.5" | 1080×1920 |
| M270HVN02.2 CELL | AUO | 27.0" | 1920×1080 |
