Product Details:
|
| Panel Brand: | SHARP | Panel Model: | LQ070T5CRQ1 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 7.0 Inch |
| Resolution: | 480(RGB)×234 | Display Mode: | TN, Normally White, Transmissive |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
LQ070T5CRQ1 Sharp LCD Panel 7.0 inch Normally White with 154.08×87.05 mm
LQ070T5CRQ1 Specification
| Panel Brand : | SHARP | |
| Panel Model : |
|
|
| Panel Type : | a-Si TFT-LCD , LCM | |
| Panel Size : | 7.0 inch | |
| Resolution : |
|
|
| Display Mode : | TN, Normally White, Transmissive | |
| Active Area : | 154.08×87.05 mm | |
| Outline : | 170×103.5 mm | |
| Surface : | Antiglare, Antireflection | |
| Brightness : |
|
|
| Contrast Ratio : | 60:1 (Min.) | |
| Display Colors : | Full color | |
| Response Time : | 30/50 (Typ.)(Tr/Td) | |
| Viewing Angle : |
|
|
| Lamp Type : | 1 pcs CCFL Embedded (Inverter) | |
| Signal Interface : | Analog RGB + Composite Video (NTSC/PAL) , 28 pins | |
| Input Voltage : | 8.0±1.0V |
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
| Panel Size : | 7.0 inch | |
| Dot Resolution : |
|
|
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 76 PPI | |
| Aspect Ratio : |
|
|
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.107×0.372 mm (H×V) | |
| Pixel Pitch : | 0.321×0.372 mm (H×V) | |
| Weight : | 320g (Max.) | |
| Surface : |
|
|
| Active Area : | 154.08×87.05 mm (H×V) | |
| Outline Dimension : | 170×103.5 mm (H×V) | |
| Outline Depth : | 17.5 (Typ.) mm | |
| Landscape or Portrait : |
|
|
| Touch Panel : | Without |
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |

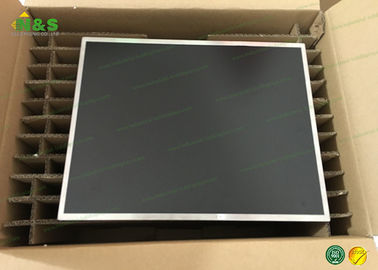

LQ070T5CRQ1 Picture
