Product Details:
|
| Panel Brand: | SHARP | Panel Model: | LQ070T3AG02 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 7.0 Inch |
| Resolution: | 480(RGB)×234 | Display Mode: | TN, Normally White, Transflective |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
LQ070T3AG02 Sharp LCD Panel LCM 480×234 350 60:1 Full color CCFL Analog
LQ070T3AG02 Detail
| Panel Brand : | SHARP | |
| Panel Model : | LQ070T3AG02 | |
| Panel Type : | a-Si TFT-LCD , LCM | |
| Panel Size : | 7.0 inch | |
| Resolution : |
|
|
| Display Mode : | TN, Normally White, Transmissive | |
| Active Area : | 155.52×87.75 mm | |
| Outline : | 176.5×107.5 mm | |
| Surface : | ||
| Brightness : | 350 cd/m² (Typ.) | |
| Contrast Ratio : | 60:1 (Min.) | |
| Display Colors : | Full color | |
| Response Time : | 30/50 (Typ.)(Tr/Td) | |
| Viewing Angle : |
|
|
| Lamp Type : | 1 pcs CCFL Embedded (Inverter) | |
| Signal Interface : | Analog RGB + Composite Video (NTSC/PAL) , 24 pins | |
| Input Voltage : | 12.0V (Typ.) |
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
After-sale Services:
1)warranty for 1 year, 7 days return for the non-working items, except broken, crashed cargo (Buyer pay for return shipping fee).
2)Please make sure the item is compatible for your model before ordering. No return for incompatible issues.
3)When you receive the item,if you find the box is break and the goods break. Please take photo about the goods and refuse accepting the goods .Please contact me and sent photo of product to me as soon as possible .I will complaint the delivery company.
We ensure offer great products, services and the most favorable prices. And we have a long-term and reliable supply. If you have any questions, suggestions or need any assistance, we are always here to give you quick response.
| Panel Size : | 7.0 inch | |
| Dot Resolution : | 480(RGB)×234 | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 75 PPI | |
| Aspect Ratio : |
|
|
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.108×0.375 mm (H×V) | |
| Pixel Pitch : | 0.324×0.375 mm (H×V) | |
| Weight : | 310±20g | |
| Active Area : | 155.52×87.75 mm (H×V) | |
| Outline Dimension : | 176.5×107.5 mm (H×V) | |
| Outline Depth : | 19.0 (Typ.) mm | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : |
|
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

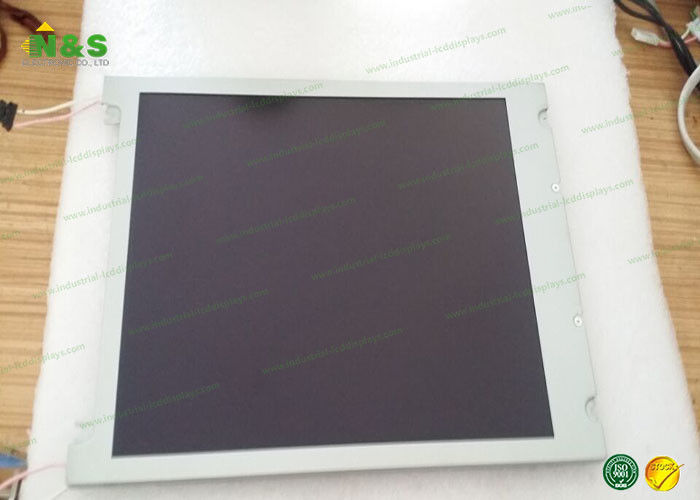

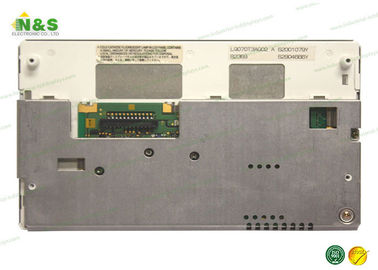

LQ070T3AG02 Picture
