Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 11.0 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×600 , SVGA | Display Mode: | TN, Normally White, Transmissive |
| Highlight: | sharp lcd display panels,sharp lcd flat screen |
||
LQ121S1LG43 Antiglare SHARP 12.1 inch for Industrial Application
LQ121S1LG43 Specification
| Panel Size : | 12.1 inch |
| Dot Resolution : | 800(RGB)x600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 82 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.1025x0.3075 mm (HxV) |
| Pixel Pitch : | 0.3075x0.3075 mm (HxV) |
| Weight : | 660g (Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 246x184.5 mm (HxV) |
| Bezel Area : | 249.0x187.5 mm (HxV) |
| Outline Dimension : | 276x209 mm (HxV) |
| Outline Depth : | 11.0 (Max.) mm |
| Holes & Brackets : | Face mounting holes (2-3.4, 2-R1.7) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 330 cd/m² (Typ.) |
| Contrast Ratio : | 450 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.2M (6-bit + FRC) |
| Color Gamut : | 73% NTSC (CIE1931) |
| Response Time : | 35 (Typ.)(Tr+Td); 10 (Typ.)(G to G) |
| Viewing Angle : | 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25 (Max.)(5 points) |
| Sunlight Readable : | N |
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |

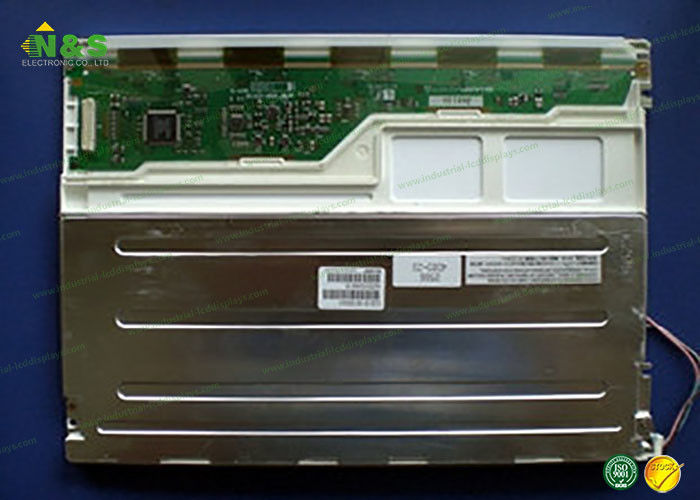

LQ121S1LG43 Picture
