Product Details:
|
| Panel Brand: | SHARP | Panel Model: | LQ065T5AR01 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 6.5 Inch |
| Resolution: | 400(RGB)×234 | Display Mode: | TN, Normally White, Transmissive |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
6.5 inch LQ065T5AR01 Sharp LCD Panel Normally White for Automotive Display panel
LQ065T5AR01 Specification
| Panel Brand : | SHARP | ||
| Panel Model : | LQ065T5AR01 | ||
| Panel Type : | a-Si TFT-LCD , LCM | ||
| Panel Size : | 6.5 inch | ||
|
|
||
| Display Mode : | TN, Normally White, Transmissive | ||
| Active Area : | 143.4×79.326 mm | ||
| Outline : | 155×89.2 mm | ||
| Surface : |
|
||
| Brightness : | 420 cd/m² (Typ.) | ||
|
60:1 (Min.) | ||
| Display Colors : | Full color | ||
| Response Time : |
|
||
| Viewing Angle : | 65/65/40/65 (Typ.)(CR≥5) (L/R/U/D) | ||
| Frequency : | 60Hz | ||
| Lamp Type : | 1 pcs CCFL Embedded (Inverter) | ||
| Signal Interface : | Analog RGB + Composite Video (NTSC/PAL) , 30 pins | ||
| Input Voltage : | 8.0V (Typ.) |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| Panel Size : | 6.5 inch | ||
| Dot Resolution : | 400(RGB)×234 | ||
| Pixel Configuration : | RGB Vertical Stripe | ||
| Pixel Density : | 71 PPI | ||
|
|
||
| Form Factor : | Flat Rectangle Display | ||
| Dot Pitch : | 0.1195×0.339 mm (H×V) | ||
| Pixel Pitch : | 0.3585×0.339 mm (H×V) | ||
| Weight : |
|
||
| Surface : | Antiglare, Antireflection | ||
|
143.4×79.326 mm (H×V) | ||
| Bezel Area : | 145.65×80.95 mm (H×V) | ||
| Outline Dimension : |
|
||
| Outline Depth : | 16.0 (Typ.) mm | ||
| Landscape or Portrait : | Landscape type | ||
| Touch Panel : | Without |
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.

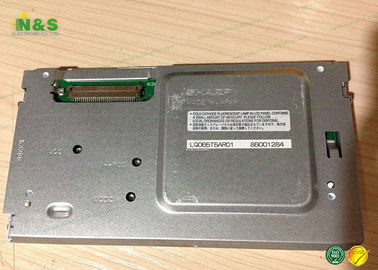

LQ065T5AR01 Picture
