Product Details:
|
| Panel Brand: | SHARP | Panel Model: | LQ050Q5DR01R |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 5.0 Inch |
| Resolution: | 320(RGB)×240 , QVGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
LQ050Q5DR01R Sharp LCD Panel 5.0 inch LCM 320×240 380 100:1 262K CCFL TTL
LQ050Q5DR01R Detail
| Panel Brand : |
|
|
| Panel Model : | LQ050Q5DR01R 1 Compatible model | |
| Panel Type : | a-Si TFT-LCD , LCM | |
| Panel Size : | 5.0 inch | |
| Resolution : | 320(RGB)×240 , QVGA | |
| Display Mode : |
|
|
| Active Area : | 101.28×74.76 mm | |
| Outline : | 119.4×89.1×16.05 mm | |
| Surface : | Antiglare, Antireflection | |
| Brightness : | 380 cd/m² (Typ.) | |
| Contrast Ratio : | 100:1 (Min.) | |
| Display Colors : | 262K (6-bit) | |
| Response Time : | 30/50 (Typ.)(Tr/Td) | |
| Viewing Angle : |
|
|
| Lamp Type : | CCFL Without Driver | |
|
Parallel RGB (1 ch, 6-bit) , 40 pins | |
| Input Voltage : | 3.3V (Typ.) |
| Panel Size : | 5.0 inch | |
| Dot Resolution : | 320(RGB)×240 (QVGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 80 PPI | |
|
4:3 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.1055×0.3115 mm (H×V) | |
| Pixel Pitch : | 0.3165×0.3115 mm (H×V) | |
| Weight : |
|
|
| Surface : | Antiglare, Antireflection | |
| Active Area : | 101.28×74.76 mm (H×V) | |
| Bezel Area : | 108.9×79.35 mm (H×V) | |
| Outline Dimension : | 119.4×89.1 mm (H×V) | |
| Outline Depth : | 12.7/16.05 (Typ./Max.) mm | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Our Services
1. Quick and accurate reply with best service attidue to our business
2. Pofessional advise
3. Quick PI confirmation
4. Close production follow up and production process feedback
5. Safe package
6. Get feekback from your side when items arrived,
7. 24 months warranty for items

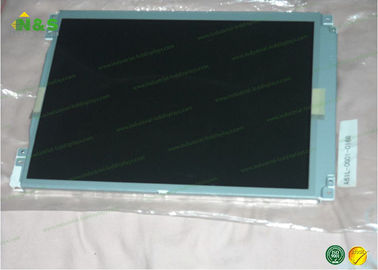

LQ050Q5DR01R Picture
