Product Details:
|
| Panel Brand: | SHARP | Panel Model: | LQ048Y3DG01 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 4.8 Inch |
| Resolution: | 800×480(RGB) , WVGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
LQ048Y3DG01 Sharp LCD Panel 4.8 inch Antiglare LCM 800×480 400 500:1 16.2M WLED TTL
LQ048Y3DG01 Specification
| Panel Brand : | SHARP | |
| Panel Model : | LQ048Y3DG01 | |
| Panel Type : | a-Si TFT-LCD , LCM | |
| Panel Size : | 4.8 inch | |
| Resolution : | 800×480(RGB) , WVGA | |
| Display Mode : |
|
|
| Active Area : | 104.4×62.64 mm | |
| Outline : | 116.5×77.9 mm | |
| Surface : | Antiglare, Hard coating (2H) | |
| Brightness : | 400 cd/m² (Typ.) | |
| Contrast Ratio : | 500:1 (Typ.) | |
| Display Colors : | 16.2M (6-bit + FRC) | |
| Response Time : | 30/30 (Typ.)(Tr/Td) | |
| Viewing Angle : |
|
|
| Frequency : | 60Hz | |
| Lamp Type : | 9S2P WLED Without Driver | |
| Signal Interface : | Parallel RGB (1 ch, 8-bit) + SPI , 67 pins | |
| Input Voltage : | 1.8/2.85V (Typ.)(VDDIO/VCI) |
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
| Panel Size : | 4.8 inch | |
| Dot Resolution : | 800×480(RGB) (WVGA) | |
| Pixel Configuration : | RGB Horizontal Stripe | |
| Pixel Density : | 194 PPI | |
| Aspect Ratio : | 15:9 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.1305×0.0435 mm (H×V) | |
| Pixel Pitch : | 0.1305×0.1305 mm (H×V) | |
| Weight : |
|
|
| Surface : | Antiglare, Hard coating (2H) | |
| Active Area : | 104.4×62.64 mm (H×V) | |
|
116.5×77.9 mm (H×V) | |
| Outline Depth : | 4.35 mm | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Embeded (4-wire Resistive) |
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

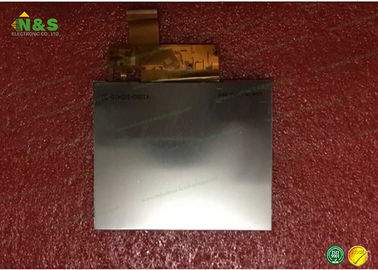

LQ048Y3DG01 Picture
