Product Details:
|
| Dot Resolution: | 1280(RGB)×1024 , SXGA | Panel Size: | 19.0 Inch |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Panel Brand: | AUO |
| Signal Interface: | LVDS (2 Ch, 8-bit) , 30 Pins | Operating Temperature: | 0 ~ 50 °C |
| Storage Temperature: | -20 ~ 60 °C | Brightness: | 250 Cd/m² (Typ.) |
| Highlight: | auo display panel,auo lcd display |
||

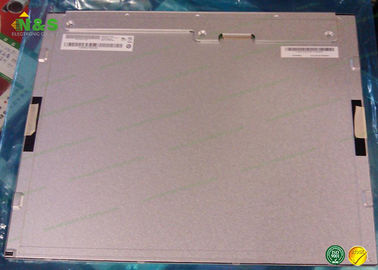

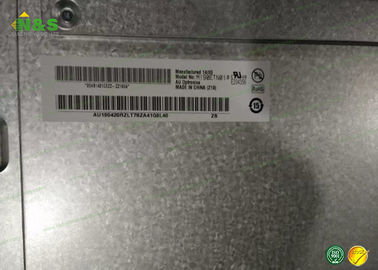

High resolution 1280*1024 auo lcd screen M190ETN01.0 without touch
Detailed Product Description:
| Panel Brand : | AUO |
| Panel Model : | M190ETN01.0 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 19.0 inch |
| Resolution : | 1280(RGB)×1024 , SXGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 376.32×301.06 mm |
| Outline : | 396×324×11.4 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 16.7M (6-bit + Hi-FRC) , CIE1931 72% |
| Response Time : | 3.6/1.4 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 11S4P WLED Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
Features:
· High brightness LCD, resistive touch screen is optional.
· The brightness and contrast can be adjusted manually or automatically, having a power saving mode.
· High-strength aluminum alloy panel, surface oxidation treatment after drawing.
· The overall protection grade IP64, front panel IP65. Dust proof and shockproof.
Mechanical Features
Panel Size : 19.0 inch
Dot Resolution : 1280(RGB)×1024 (SXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 86 PPI
Aspect Ratio : 5:4 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.098×0.294 mm (H×V)
Pixel Pitch : 0.294×0.294 mm (H×V)
Weight : 1.80Kgs (Typ.)
Surface : Antiglare, Hard coating (3H)
| Active Area : | 376.32×301.06 mm (H×V) |
| Bezel Area : | 380.0×305.08 mm (H×V) |
| Outline Dimension : | 396×324 mm (H×V) |
| Outline Depth : | 11.4 (Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| H497DAN02.1 | AUO | 5.0" | 1080×1920 |
| M270HVN02.3 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.2 CELL | AUO | 27.0" | 1920×1080 |
| M270DTN01.0 CELL | AUO | 27.0" | 2560×1440 |
| T320HVN05.7 CELL | AUO | 31.5" | 1920×1080 |
| T320HVN05.4 CELL | AUO | 31.5" | 1920×1080 |
| T215HVN01.2 CELL | AUO | 21.5" | 1920×1080 |
| B070ATN02.0 CELL | AUO | 7.0" | 600×1024 |
| M238DAN01.3 CELL | AUO | 23.8" | 2560×1440 |
| B070AAN01.0 | AUO | 7.0" | 600×1024 |
| M238DAN01.1 CELL | AUO | 23.8" | 2560×1440 |
| M270DAN02.0 CELL | AUO | 27.0" | 2560×1440 |
| H598DAN03.0 | AUO | 6.0" | 1080×1920 |
AUO M190ETN01.0 Backlight System
Lamp Position : Edge light type (Bottom side)
Lamp Amount : 11S4P
Lamp Shape : 4 strings
Lamp Life Time : 30K(Min.) (Hours)
Lamp Voltage : 35.2±2.2V
Lamp Current : 60/63mA (Typ./Max.)
Lamps Power Consumption : 8.45/9.42W (Typ./Max.)
Interface Type : Connector
100% Tested Before Shipping.
