Product Details:
|
| Dot Pitch: | 0.100×0.300 Mm (H×V) | Panel Size: | 18.5 Inch |
|---|---|---|---|
| Pixel Pitch: | 0.300×0.300 Mm (H×V) | Touch Panel: | Without |
| Contrast Ratio: | 1000 : 1 (Typ.) (Transmissive) | Outline Depth: | 7.8/10.3 (Typ./Max.) Mm |
| Brightness: | 250 Cd/m² (Typ.) | ||
| Highlight: | auo display panel,auo lcd display |
||

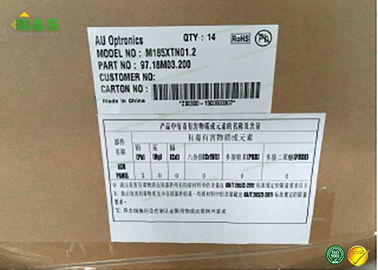

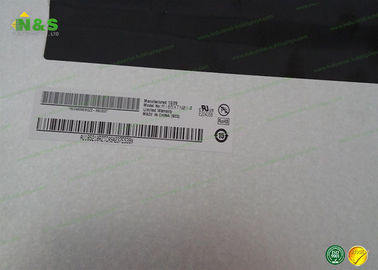

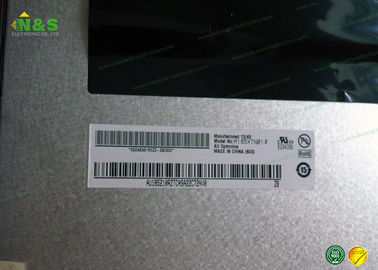

AUO LCD Panel 18.5 inch M185XTN01.2 Flat Rectangle Display without touch for 1366*768
AUO M185XTN01.2 Mechanical Features
Panel Size : 18.5 inch
Dot Resolution : 1366(RGB)×768 (WXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 84 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.100×0.300 mm (H×V)
Pixel Pitch : 0.300×0.300 mm (H×V)
Weight : 1.29Kgs (Typ.)
Surface : Antiglare, Hard coating (3H)
Active Area : 409.8×230.4 mm (H×V)
Bezel Area : 413.4×234.0 mm (H×V)
Outline Dimension : 430.4×254.6 mm (H×V)
Outline Depth : 7.8/10.3 (Typ./Max.) mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without
AUO M185XTN01.2 General Features
| Panel Brand : | AUO |
| Panel Model : | M185XTN01.2 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 18.5 inch |
| Resolution : | 1366(RGB)×768 , WXGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 409.8×230.4 mm |
| Outline : | 430.4×254.6×10.4 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 16.7M (6-bit + Hi-FRC) , CIE1931 72% |
| Response Time : | 3.6/1.4 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 8S4P WLED Without Driver |
| Signal Interface : | LVDS (1 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
AUO M185XTN01.2 Optical Features
Display Mode : TN, Normally White, Transmissive
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 1000 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (6-bit + Hi-FRC)
Color Gamut : 72% NTSC (CIE1931)
Response Time : 3.6/1.4 (Typ.)(Tr/Td)
Viewing Angle : 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D)
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.25/1.33 (Typ./Max.)(9 points)
AUO M185XTN01 Series Model
| Panel Model | Size | Type | Resolution | cd/m2 | C/R | Backlight | Color |
| M185XTN01.3 CELL | 18.5" | CELL | 1366×768 | 0 | 700:01:00 | No B/L | 16.7M |
| M185XTN01.3 | 18.5" | Panel | 1366×768 | 200 | 700:01:00 | WLED | 16.7M |
| M185XTN01.2 CELL | 18.5" | CELL | 1366×768 | 0 | 1000:01:00 | No B/L | 16.7M |
| M185XTN01.2 | 18.5" | Panel | 1366×768 | 250 | 1000:01:00 | WLED | 16.7M |
| M185XTN01.1 | 18.5" | Panel | 1366×768 | WLED | 16.7M | ||
| M185XTN01.0 | 18.5" | Panel | 1366×768 | 200 | 700:01:00 | WLED | 16.7M |
Our services:
We thought that every customer is our family member.
2. Best service with help is needed, if you have any problem, the first one you thought for help must be our team
3. Try our best to meet our customers’ requirements.
4. 24 hours online.
5. Check the item one by one before packing.
6. Delivery the product within our promise time.
7. Follow the order all the time, till you sell them successfully without any problem.
[Shipping & Delivery term]
1. We will ship all your order within 3 working days after receiving your payment. Otherwise, we will state it in the invoice in advance.
2. We can Ship via your shipping account (DHL / FEDEX / UPS / TNT or others) as your instruction. Or Ship via our shipping account (We have good relationship with DHL and FEDEX with very special freight).
3. Regarding the declared value on the package for customs clearance, we are pleased to follow your wishes, just feel free to inform us when ordering.
4. Any import fees or charges are the buyer's responsibility.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| A090XE01 V6 | AUO | 9.0" | 1024×768 |
| A090XE01 V5 | AUO | 9.0" | 1024×768 |
| A043SE01 V3 | AUO | 4.3" | 600×800 |
| H283QN00 V6 | AUO | 2.8" | 240×320 |
| M270DAN01.0 CELL | AUO | 27.0" | 2560×1440 |
