Product Details:
|
| Brightness: | 130 Cd/m² (Typ.) | Active Area: | 38.88×64.8 Mm |
|---|---|---|---|
| Outline: | 47.28×76.4 Mm | Contrast Ratio: | 100:1 (Typ.)(Transmissive) 8:1 (Typ.)(Reflective) |
| Resolution: | 240(RGB)×400 , WQVGA | Frequency: | 60Hz |
| Panel Size: | 3.0 Inch | Pixel Density: | 156 PPI |
| Highlight: | black and white lcd display,lcd display white screen |
||

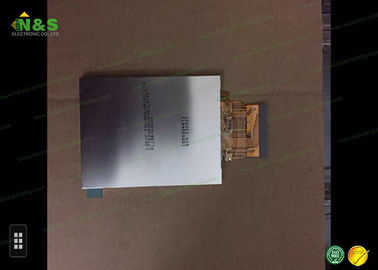

130 cd / m² Tianma LCD Displays , TM030LBHT1 a-Si TFT tft lcd industry 240*400
100% Tested Before Shipping.
We mainly sell Industrial LCD panel and touch screen, provides the product information, technical consultation for all kinds of LCD screen and touch screen, We have many stock parts for 3.5-20inches is between the various industrial screen, They are applicable to vehicle, medical equipment, injection molding machine ,industrial equipment etc. Welcome to order.
We sale TFT LCD module for the PDA, GPS, game device and mobile phone and it is one of the largest scale and best after-service company in the area of PDA spare parts.
Advantages of N&S For the TFT LCD Screen:
Wholesale Price: We are the agency & professional sourcing buyer for the various branded LCD screens.
Fast delivery: We own the stock for the EOL & hard-to-find LCD screen replacements.
High Quality: Each LCD Screen will be tested pcs by pcs before shipments.
Good service: Professional international trade sales team & LCD panels testing team for 6 years.
One year international warranty.
TIANMA TM030LBHT1 General Features
| Panel Brand : | TIANMA |
| Panel Model : | TM030LBHT1 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 3.0 inch |
| Resolution : | 240(RGB)×400 , WQVGA |
| Display Mode : | ECB, Normally White, Transflective |
| Active Area : | 38.88×64.8 mm |
| Outline : | 47.28×76.4 mm |
More details :
Brightness : 130 cd/m² (Typ.)
Contrast Ratio : 100:1 (Typ.)(Transmissive) 8:1 (Typ.)(Reflective)
Display Colors : 262K (6-bit)
Response Time : 35 (Typ.)(Tr+Td)
Viewing Angle : 40/45/55/40 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 4S1P WLED Without Driver
Signal Interface : CPU/RGB/SPI , 45 pins
Input Voltage : 2.8/2.8V (Typ.)(VCC/IOVCC)
TIANMA TM030LBHT1 Mechanical Features
Panel Size : 3.0 inch
Dot Resolution : 240(RGB)×400 (WQVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 156 PPI
Aspect Ratio : 3:5 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.054×0.162 mm (H×V)
Pixel Pitch : 0.162×0.162 mm (H×V)
Weight : 28.35g
Active Area : 38.88×64.8 mm (H×V)
Outline Dimension : 47.28×76.4 mm (H×V)
Outline Depth : 3.5 (Typ.) mm
Landscape or Portrait : Portrait type
Touch Panel : Embeded (4-wire Resistive)
TIANMA TM030LBHT1 Optical Features
| Display Mode : | ECB, Normally White, Transflective |
| Brightness : | 130 cd/m² (Typ.) |
| Contrast Ratio : | 100 : 1 (Typ.) (Transmissive) |
| Contrast Ratio : | 8:1 (Typ.) (Reflective) |
| Display Color : | 262K (6-bit) |
| Response Time : | 35 (Typ.)(Tr+Td) |
| Viewing Angle : | 40/45/55/40 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 12 o'clock |
| White color Chromaticity : | Wx:0.300; Wy:0.330 |
| Reflectance Ratio : | 6.85% (Typ.) |
| Sunlight Readable : | Sunlight Readable |
Why Choose Us?
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in international trade for the LCD display sourcing.
6. Fabulous after-sale service.
7. The brand we could hand for the LCD Panel contained but not limited to AUO, Chimei, Hitachi, Innolux, KOE, Tianma, LG, NEC, Samsung, Sharp, Optrex and more other industrial LCD Screen.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| TM240160XCFWGRA | Tianma | 2.2" | 240×160 |
| TM128128F6CCWGWC1 | Tianma | 1.44" | 128×128 |
| TM12864G3CCWGWA-1 | Tianma | 2.4" | 128×64 |
| TM050XYSP02 | Tianma | 5.0" | 540×960 |
| TM050JYHN11-00 | Tianma | 5.0" | 720×1280 |
| TM055JYSP08 | Tianma | 5.5" | 720×1280 |
| TM040XYHP01 | Tianma | 4.0" | 640×1136 |
