Product Details:
|
| Dot Resolution: | 640(RGB)×480 , VGA | Panel Size: | 10.4 Inch |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , Panel | Pixel Configuration: | RGB Vertical Stripe |
| Pixel Density: | 76 PPI | Dot Pitch: | 0.110×0.330 Mm (H×V) |
| Active Area: | 211.2×158.4 Mm | Brightness: | 350 Cd/m² (Typ.) |
| High Light: | industrial lcd screen,industrial lcd panel |
||

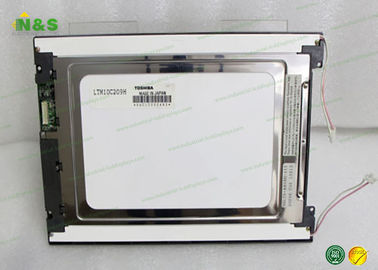

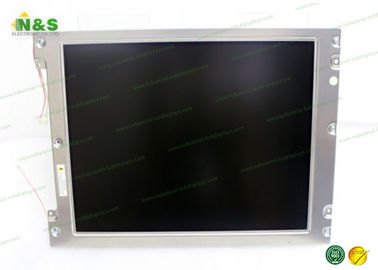

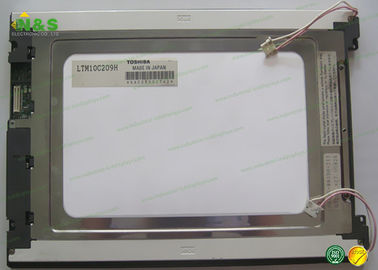

10.4 inch LTM10C209H TORISAN LCD Displays , 640*480 monitor lcd industrial 350 cd / m²
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LT065AC57400 | TOSHIBA | 6.5" | 640×480 |
| LT065AC57000 | TOSHIBA | 6.5" | 640×480 |
| LT057AC47200 | TOSHIBA | 5.7" | 640×480 |
| LT057AC47100 | TOSHIBA | 5.7" | 640×480 |
| LT057AA34E00 | TOSHIBA | 5.7" | 320×240 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
Detailed Product Description:
| Panel Brand : | TOSHIBA |
| Panel Model : | LTM10C209H |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 10.4 inch |
| Resolution : | 640(RGB)×480 , VGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 211.2×158.4 mm |
| Outline : | 265×188.8×12 mm |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 250:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 50/50 (Max.)(Tr/Td) |
| Lamp Type : | 2 pcs CCFL Without Driver |
| Signal Interface : | CMOS (1 ch, 6-bit) , 31 pins |
| Input Voltage : | 5.0V (Typ.)(VDD) |
| Panel Model | Size | Type | Resolution | cd/m2 | C/R | Backlight | Color | Interface |
| LTM10C209H | 10.4" | Panel | 640×480 | 350 | 250:01:00 | CCFL | 262K | TTL |
| LTM10C209F | 10.4" | Panel | 640×480 | CCFL | 262K | |||
| LTM10C209AF | 10.4" | Panel | 640×480 | CCFL | ||||
| LTM10C209AC | 10.4" | Panel | 640×480 | 250:01:00 | CCFL | 262K | TTL | |
| LTM10C209A | 10.4" | Panel | 640×480 | 250 | 250:01:00 | CCFL | 262K | TTL |
| LTM10C209 | 10.4" | Panel | 640×480 | 250:01:00 | CCFL | 262K | TTL |
Product Application
Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
TOSHIBA LTM10C209H Mechanical Features
Panel Size : 10.4 inch
Dot Resolution : 640(RGB)×480 (VGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 76 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.110×0.330 mm (H×V)
Pixel Pitch : 0.330×0.330 mm (H×V)
Weight : 605g (Typ.)
Active Area : 211.2×158.4 mm (H×V)
Bezel Area : 216.2×163.4 mm (H×V)
Outline Dimension : 265×188.8 mm (H×V)
Outline Depth : 12.0 (Max.) mm
Holes & Brackets : Face mounting holes (4-Φ3.2) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without
TOSHIBA LTM10C209H Optical Features
Display Mode : TN, Normally White, Transmissive
Brightness : 350 cd/m² (Typ.)
Contrast Ratio : 250 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Response Time : 50/50 (Max.)(Tr/Td)
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
