Product Details:
|
| Display Colors: | 262K (6-bit) | Resolution: | 800(RGB)×600 , SVGA |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Active Area: | 170.4×127.8 Mm |
| Brightness: | 350 Cd/m² (Typ.) | Panel Size: | 8.4 Inch |
| Pixel Configuration: | RGB Vertical Stripe | Pixel Density: | 119 PPI |
| High Light: | industrial lcd screen,industrial lcd panel |
||

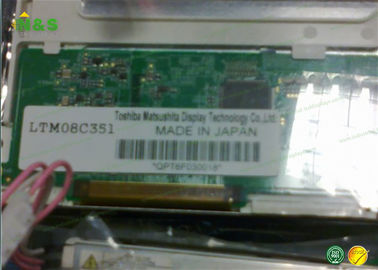

800*600 Industrial LCD Displays LTM08C351 TN , Normally White , Transmissive
Why Choose our company?
Key Specifications
| Panel Brand : | Toshiba Matsushita |
| Panel Model : | LTM08C351 |
| Panel Type : | LTPS TFT-LCD , Panel |
| Panel Size : | 8.4 inch |
| Resolution : | 800(RGB)×600 , SVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 170.4×127.8 mm |
| Outline : | 199.5×149.5 mm |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 250:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 50/50 (Max.)(Tr/Td) |
| Viewing Angle : | 50/50/40/50 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 2 pcs CCFL Without Driver |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 30 pins |
| Input Voltage : | 3.3V (Typ.)(VDD) |
Product details:
Display Mode : TN, Normally White, Transmissive
Brightness : 350 cd/m² (Typ.)
Contrast Ratio : 250 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Response Time : 50/50 (Max.)(Tr/Td)
Viewing Angle : 50/50/40/50 (Typ.)(CR≥10) (L/R/U/D)
Lamp Position : Edge light type (Top side)
Lamp Type : CCFL
Lamp Amount : 2 pcs
Lamp Shape : Straight
Lamp Life Time : 50K(Typ.) (Hours)
Lamp Replaceable : Replaceable
Lamp Voltage : 480V (Typ.)
Lamp Current : 3.0/6.5mA (Min./Max.)
Lamp Startup Voltage : 1300/1600V (Min./Max.)(Ta=0℃)
Interface Type : Connector
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| ED133TT1 | E Ink | 13.3" | 2200×1650 |
| ED060SD1 | E Ink | 6.0" | 600×800 |
| ED060SCT | E Ink | 6.0" | 600×800 |
| ET043OC1 | E Ink | 4.4" | 360×640 |
| EN133UT1 | E Ink | 13.3" | 1600×1200 |
Basic Info:
| Panel Size : | 8.4 inch |
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 119 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.071×0.213 mm (H×V) |
| Pixel Pitch : | 0.213×0.213 mm (H×V) |
| Weight : | 385g (Typ.) |
| Active Area : | 170.4×127.8 mm (H×V) |
| Bezel Area : | 173.4×130.8 mm (H×V) |
| Outline Dimension : | 199.5×149.5 mm (H×V) |
| Outline Depth : | 12.0 (Max.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.4) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Features:
1) High range of temperature;
2) LCD Display Grade: 100% New , Grade A+;
3) LVDS Interface and VGA interface
4) High-speed response, Low power consumption
5) Panel Type: TFT
6) Surface Treatment: Haze 25%, Hard coating(3H)
7) Competitive price, offer 1 year of warranty;
8) Original technology support.
9) ISO9001 certification.
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.

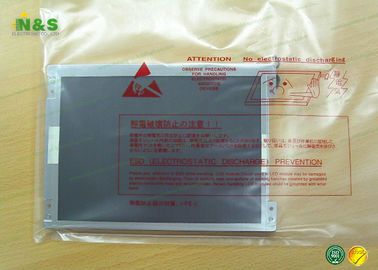

5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
