Product Details:
|
| Aspect Ratio: | 16:9 (H:V) | Resolution: | 1366(RGB)×768 , WXGA |
|---|---|---|---|
| Pixel Configuration: | RGB Vertical Stripe | Weight: | 470g (Max.) |
| Outline Depth: | 5.5 (Max.) Mm | Panel Size: | 15.6 Inch |
| Highlight: | lg display panel,lg replacement screen |
||

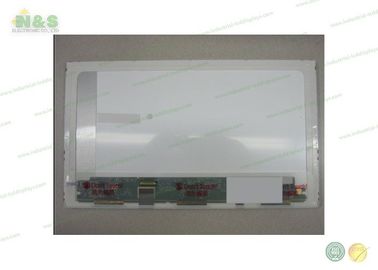

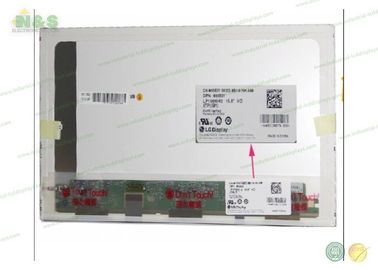

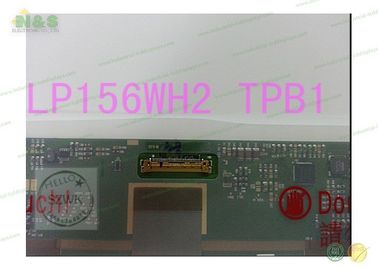

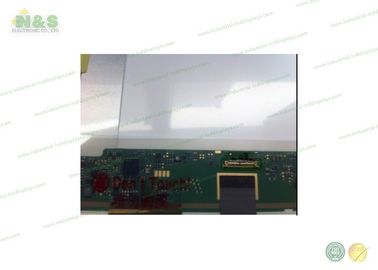

Original and high resolution 1366*768 a-Si TFT-LCD , Panel LP156WH2-TPB1 with 15.6 inch
Some details:
| Step1 | Send us inquiry or leave us message online, indicating us following information |
| 1. LCD screen model NO., quantities, and colors you want to order | |
| 2. your name, email and address | |
| 3. the payment and shipment method which are convenient to you | |
| 4. anything else you would like to know | |
| Step 2 | We will get back to you with our best price and the shipping cost very quickly, and answer all your concerned questions in details |
| Step 3 | After order confirmed, you can choose to pay the money by T/T, Paypal, Western and then provide us your delivery address and phone number |
| Step 4 | Sit back and wait patiently. Goods will be shipped out within 3 days, we will send the tracking number to your email once shipped out. |
| Step 5 | After you receive the goods, please let us know if it is in good condition, and your suggestions are welcome. |
LG Display LP156WH2-TPB1 General Features
Panel Brand : LG Display
Panel Model : LP156WH2-TPB1
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 15.6 inch
Resolution : 1366(RGB)×768 , WXGA
Display Mode : TN, Normally White, Transmissive
Active Area : 344.232×193.536 mm
Outline : 359.3×209.5×5.5 mm
Shape Style : Wedge (PCBA Bent, Depth ≥5.2mm)
Brightness : 220 cd/m² (Typ.)
Contrast Ratio : 300:1 (Min.)
Display Colors : 262K (6-bit) , CIE1931 60%
Response Time : 16 (Typ.)(Tr+Td)
Viewing Angle : 40/40/10/30 (Min.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : WLEDEmbedded (LED Driver)
Signal Interface : eDP (2 Lanes) , 30 pins
Input Voltage : 3.3V (Typ.)
LG Display LP156WH2-TPB1 Mechanical Features
| Panel Size : | 15.6 inch |
| Dot Resolution : | 1366(RGB)×768 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 100 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.084×0.252 mm (H×V) |
| Pixel Pitch : | 0.252×0.252 mm (H×V) |
| Weight : | 470g (Max.) |
| Surface : | Antiglare |
| Active Area : | 344.232×193.536 mm (H×V) |
| Bezel Area : | 349.8×197.1 mm (H×V) |
| Outline Dimension : | 359.3×209.5 mm (H×V) |
| Outline Depth : | 5.5 (Max.) mm |
| Shape Style : | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Holes & Brackets : | Side mounting holes (8-M2) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
