Product Details:
|
| Weight: | 220/230g (Typ./Max.) | Form Factor: | Flat Rectangle Display |
|---|---|---|---|
| Input Voltage: | 3.3V (Typ.) | Brightness: | 300 Cd/m² (Typ.) |

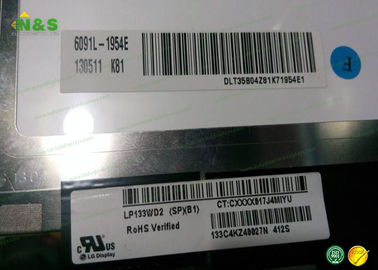

| Model Alias: | LP133WD2 (SP)(B1) | Panel Size: | 13.3 Inch |
| Contrast Ratio: | 500:1 (Min.) | Resolution: | 1600(RGB)×900 , HD+flat Lcd Panel |
| Highlight: | lg display panel,lg lcd display |
||
300 cd/m² LG LCD Panel 12.5 inch LP125WH2-SLB1 with 1366*768
Company Information:
ShenZhen N&S Technology CO., LTD was established in 2010, Speciliazed in the LCD product development / production, we holds the operating philosophy of "quality, service, responsibility, innovation".
Our products have passed the certification of ISO9001 Quality Management Systemin order to improve quality of our products.
We have a wealth of professional experience and strong research and development, always walk in the forefront of the industry in the fierce market competition, with unremitting efforts to achieve development!
custom original industrail lcd display
1. customized is welcome
2. fast delivery time
3. ISO 9001 certificate
4. small size
LG Display LP125WH2-SLB1 Basic Information
Panel Brand : LG Display
Panel Model : LP125WH2-SLB1
Model Alias : LP125WH2 (SL)(B1)
Panel Type : a-Si TFT-LCD , Panel
Operating Temperature : 0 ~ 50 °C
Storage Temperature : -20 ~ 60 °C
| Lamp Position : | Edge light type |
| Lamp Type : | WLED |
| Lamp Life Time : | 12K(Min.) (Hours) |
| Interface Type : | Included in panel signal interface |
| Lamp Driver Board : | Embedded (LED Driver) |
| Lamp Driver Board : | 7.0/12.0/21.0V (Min./Typ./Max.) |
| Lamp Driver Board : | 3.95/4.2W (Typ./Max.) |
LG Display LP125WH2-SLB1 Mechanical Features
Panel Size : 12.5 inch
Dot Resolution : 1366(RGB)×768 (WXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 125 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.067×0.201 mm (H×V)
Pixel Pitch : 0.201×0.201 mm (H×V)
Weight : 290g (Max.)
Surface : Antiglare
Active Area : 275.59×154.94 mm (H×V)
Bezel Area : 280.30×159.52 mm (H×V)
Outline Dimension : 300.4×180.9 mm (H×V)
Outline Depth : 3.7 (Max.) mm
Holes & Brackets : Face mounting holes (6 pcs) on left, right slugs
Landscape or Portrait : Landscape type
Touch Panel : Without
| Display Mode : | IPS, Normally Black, Transmissive |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Min.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 50% NTSC (CIE1931) |
| Response Time : | 35 (Typ.)(Tr+Td) |
| Viewing Angle : | 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.43/1.67 (Typ./Max.)(13 points) |
Product Application
Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
