Product Details:
|
| Panel Size: | 12.1 Inch | Resolution: | 1280(RGB)×800 , WXGA |
|---|---|---|---|
| Display Colors: | 262K (6-bit) | Input Voltage: | 3.3V (Typ.) |
| Brightness: | 250 Cd/m² (Typ.) | Model Alias: | LP121WX4 (TL)(A1) |
| Highlight: | lg display panel,lg replacement screen |
||

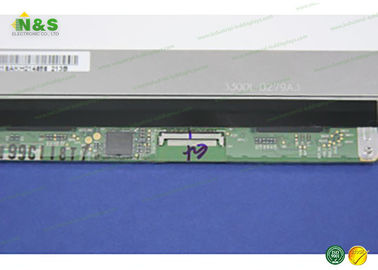

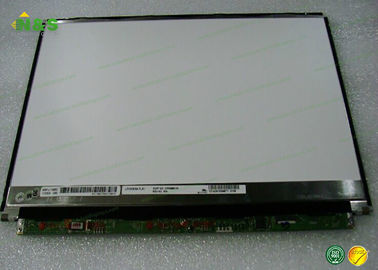

Original 12.1 inch LP121WX4-TLA1 for 1280*800, without touch screen monitor
Application
Specifications
| Panel Size : | 12.1 inch |
| Dot Resolution : | 1280(RGB)×800 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 125 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0676×0.2028 mm (H×V) |
| Pixel Pitch : | 0.2028×0.2028 mm (H×V) |
| Weight : | 145/155g (Typ./Max.) |
| Surface : | Antiglare |
| Active Area : | 259.594×162.24 mm (H×V) |
| Bezel Area : | 264.6×166.6 mm (H×V) |
| Outline Dimension : | 270.6×187.5 mm (H×V) |
| Outline Depth : | 2.95/3.45 (Max.) mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Display Mode : TN, Normally White, Transmissive
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 250 : 1 (Min.) (Transmissive)
Display Color : 262K (6-bit)
Response Time : 25 (Typ.)(Tr+Td)
Viewing Angle : 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.33/1.67 (Max.)(5/13 points)
General Features
| Panel Brand : | LG Display |
|---|---|
| Panel Model : | LP121WX4-TLA1 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 12.1 inch |
| Resolution : | 1280(RGB)×800 , WXGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 259.594×162.24 mm |
| Outline : | 270.6×187.5×3.45 mm |
| Surface : | Antiglare |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 250:1 (Min.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 6 strings WLED Embedded (LED Driver) |
| Signal Interface : | LVDS (1 ch, 6-bit) , 30 pins |
| Input Voltage : | 3.3V (Typ.) |
