Product Details:
|
| Signal Interface: | LVDS (2 Ch, 8-bit) , 30 Pins | Display Mode: | AHVA, Normally Black, Transmissive |
|---|---|---|---|
| Display Colors: | Grayscale (8-bit) | Lamp Type: | 9S6P WLED Embedded (LED Driver) |
| Outline: | 396×324×17.5 Mm | Brightness: | 1300 Cd/m² (Typ.) |
| Highlight: | auo display panel,auo lcd screen |
||

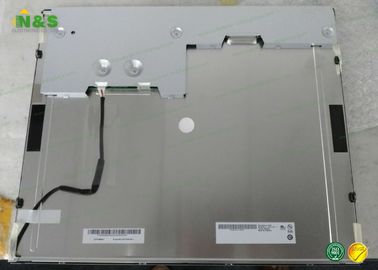

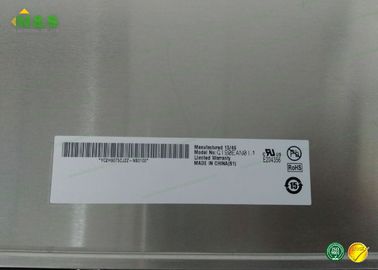

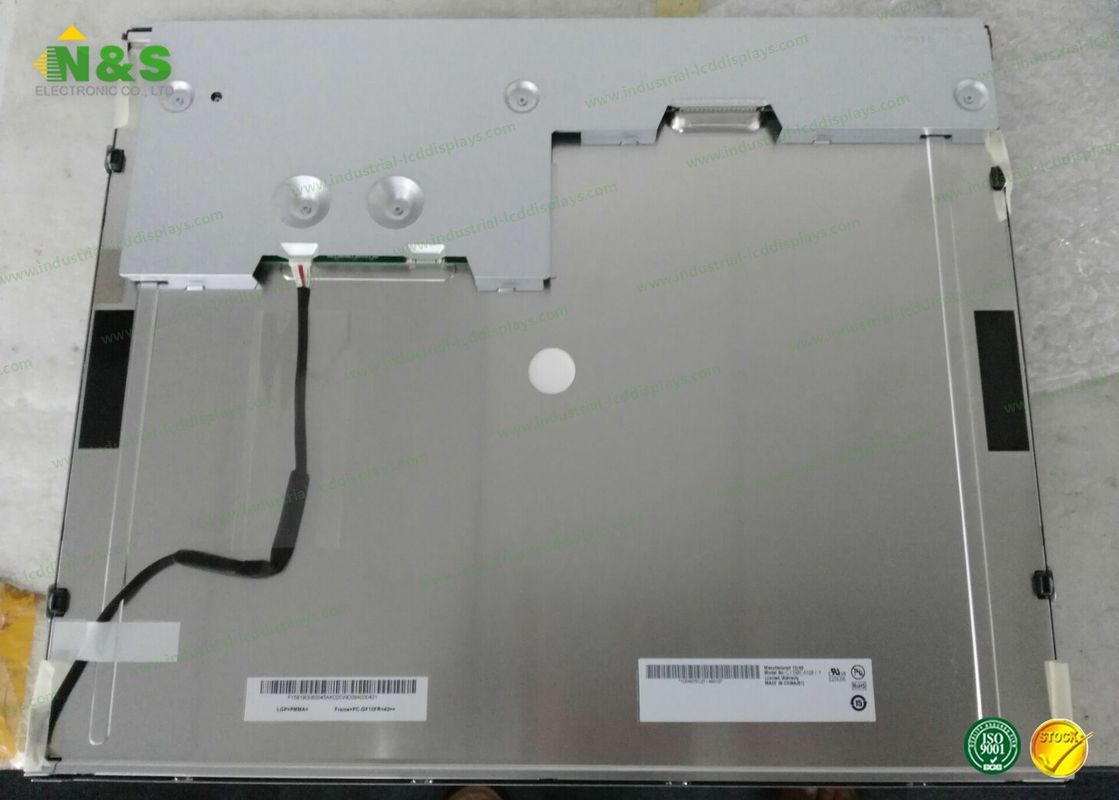

G190EAN01.1 AUO 19 inch ultra high brightness LCD Panel for Medical display
General Characteristics
| Panel Brand : | AUO |
| Panel Model : | G190EAN01.1 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 19.0 inch |
| Resolution : | 1280(LCR)×1024 , SXGA |
| Display Mode : | AHVA, Normally Black, Transmissive |
| Active Area : | 376.32×301.056 mm |
| Outline : | 396×324×17.5 mm |
| Surface : | Antiglare |
| Brightness : | 1300 cd/m² (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | Grayscale (8-bit) |
| Response Time : | 13/12 (Typ.)(Tr/Td) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
WHY US
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.
(3) We will do our best to solve any possible problem for your after sale. Please contact to us.
Return and Refund:
(1) Please notify us ASAP if the LCD Displays you received is defective. Please do not raise any dispute without communication.
(2) All LCD panels must be informed before returning. Defective item must be reported and returned within our warranty period.
(3) Returned item must have original package and be in good condition if possible, pls provide us the tracking number and returning reason.
Structural Parameter
| Operation Temperature | 0 °C ~ 50 °C |
| Storage Temperature | -20°C ~ 60°C |
| Surface Technology | Antiglare |
| Active Area | 376.32×301.056 mm |
| Display Area | 380.32×305.06 |
| Outline | 396.00× 324.00×17.50 mm |
| Touch Panel | Without |
| Lamp Position | Edge light type (Bottom side) |
| Backlight | WELD |
| Lamp Number | 9S6P pcs |
| Lamp Shape | 6 strings |
| Life Time of Lamp | 50K Hours |
| Voltage of Lamp | 28.75V |
| Current of Lamp | 80mA |
| Driver of Backlight | LED Driver Module |
| Kind of Backlight Interface | Connector |
| Brand of Backlight Interface | STM |
| Model of Backlight Interface | MS24019R |
| Quantity of Backlight Interface | 1 pcs |
| Pitch of Backlight Interface | 1.25 mm mm |
| Backlight Interface Define | LVDS-30P2C8B-190A |
Competitive Advantage:
1. We are a leading vendor & distributor for the LCD panels for more than 6 years.
2. We got the ISO9001 quality management system certification.
3. We have our own sourcing line & agency for the hard-to-find & shortage LCD panel models.
4. We are the professional team for the LCD screen sourcing & international trade with 6-year experience.
5. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 1-3 working days.
6. 1-year warranty is offered.
7. All LCD Panel will be tested before shipment.
8. We are the vendor & distributor in LCD panel area already for 6 years. We own our professional & competitive LCD screen sourcing line.
Product Details for G190EAN01.1
