Product Details:
|
| Viewing Angle: | 80/80/60/70 (Typ.)(CR≥10) (L/R/U/D) | Color Gamut: | 90% NTSC (CIE1931) |
|---|---|---|---|
| White Variation: | 1.25/1.33 (Typ./Max.)(9 Points) | Landscape Or Portrait: | Landscape Type |
| Outline Depth: | 12.45 (Typ.) Mm | Active Area: | 337.92×270.336 Mm (H×V) |
| Operating Temperature: | -30 ~ 85 °C | Pixel Density: | 96 PPI |
| Highlight: | auo display panel,auo lcd screen |
||

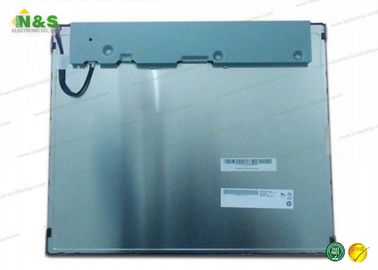

AUO G170ETN02.0 17 inch wide temperature industrial original screen
Quick Details
| Model: | G170ETN02.0 | Brand Name: | AUO |
| Type: | TFT | Size | 17.0 inch |
| Resolution: | 1280(RGB)x1024, SVGA | Display mode: | TN,Normally White,Transmissive |
| Outline | 358.5x296.5mm | Brightness: | 400 cd/㎡(Typ.) |
| backlight: | WLED | Signal Category : | LVDS(2 ch, 8-bit) |
Product Specifications
Specification:
Screen Size: 17 inch
Resolution: 1280(RGB)x1024,SVGA
Luminance: 400 cd/m²
Contrast Ratio: 800: 1(Typ. )(Transmissive)
Active Area: 337.92×270.336 mm
Viewing Angle: 80/80/60/70 (Typ.)(CR≥10) (L/R/U/D)
Operation Temperature(° C): -30 ~ 85 °C
Storage Temperature(° C): -30 ~ 85 °C
Lamp Position : Edge light type (Top side)
Lamp Life Time : 50K(Typ.) (Hours)
Interface Type : Connector
Signal Category : LVDS
Input Voltage for Panel : 5.0V (Typ.)
Input Current for Panel : 1.05/1.16A (Typ./Max.)
Panel Power Consumption : 5.25/5.8W (Typ./Max.)
Primary Competitive Advantages:
Our Advantages
Product Details for AUO G170ETN02.0
