Product Details:
|
| Pixel Configuration: | RGB Vertical Stripe | Dot Pitch: | 0.088×0.264 Mm (H×V) |
|---|---|---|---|
| Weight: | 1.30Kgs (Typ.) | Pixel Pitch: | 0.088×0.264 Mm |
| Total Power Consumption: | 13.0W (Typ.) | Lamp Type: | WLED |
| Signal Category: | LVDS | Operation Temperature: | 0 °C ~ 50 °C |
| Highlight: | auo display panel,auo lcd display |
||
High Resolution 17 inch TFT LCD Panel for G170ETN01.0 AUO Ultra Clear LCD Screen
Essential Parameter
Productor: AUO
MODEL: G170ETN01.0
Size: 17.0"
Resolution: 1280×1024
Resolution Name: SXGA
Display scale: 5:4
Pixel Arrangement: RGB Vertical Stripe
Pixel Pitch: 0.088×0.264 mm
Panel Composition: Liquid Crystal Display
Technology: a-Si TFT-LCD
Applications: Industry
Panel Features:
Wide color gamut, white LED, cabin LED driver, mist, wide Angle
G170ETN01.0 Backlight System
| Lamp Position : | Edge light type (Top side) | |||||
| Lamp Type : | WLED | |||||
| Lamp Life Time : | 30K(Min.) (Hours) | |||||
| Lamp Replaceable : | Replaceable | |||||
| Interface Type : | Connector | |||||
| Backlight Interface: | Brand | Model | Pin Pitch | Pins | Amount | |
| E&T | 3806K-F06Y-03R | 1.25 mm | 6 pins | 1 pcs | ||
| Lamp Driver Board : | Embedded (LED Driver) | |||||
| Lamp Driver Board : | 10.8/12.0/12.6V (Min./Typ./Max.) | |||||
| Lamp Driver Board : | 0.8A (Typ.) | |||||
| Lamp Driver Board : | 9.6W (Typ.) | |||||
SERVICE SCOPE
Payment:
1. Bank transfer , Western Union , T/T, Paypal are accepted.
2. If any problem of payment, you can contact with us.
Warranty:
1. All panels’ grade is promised strictly same as original factory’s standard.
2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.
3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
4. ISO 9001 guarantee.
Feedback:
1. Your early confirmation will be highly appreciated after receiving the item.
2. If you are satisfied with our item, pls contact to us also for other items, actually, we are not only own professional sourcing lines for AUO, LG, Samsung, Tianma, KOE, NEC, Hitachi, Optrex and more.
Main Screen Type:

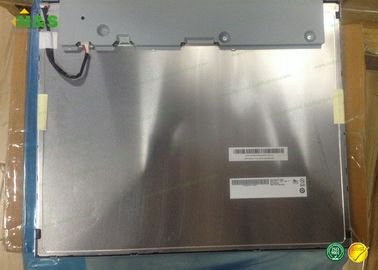

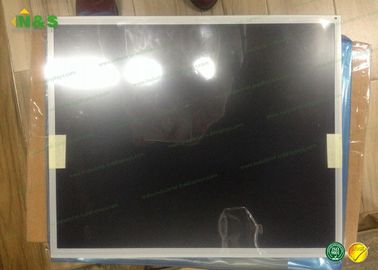

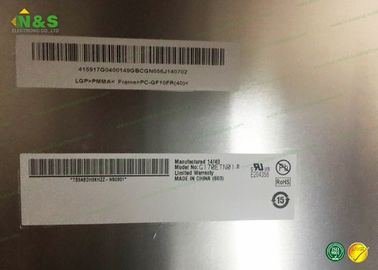

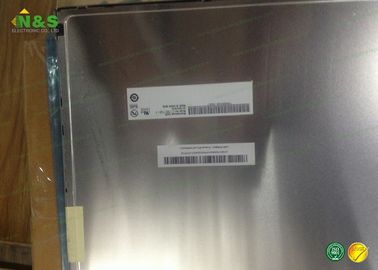

Product Photo for AUO G170ETN01.0
