Product Details:
|
| Display Colors: | 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 72% | Response Time: | 20/15 (Typ.)(Tr/Td) |
|---|---|---|---|
| Signal Interface: | LVDS (1 Ch, 6/8-bit) , 30 Pins | Brightness: | 300 Cd/m² (Typ.) |
| Contrast Ratio: | 1500:1 (Typ.) | Surface: | Antiglare, Hard Coating (3H) |
| Backlight: | WLED | Outline: | 326.50× 253.50×9.60 Mm |
| Highlight: | auo display panel,auo lcd display |
||
1024*768 AUO LCD Panel , G150XVN01.1 15 lcd display module for Industrial Applications
Product Common Parameters
| Model | G150XVN01.1 |
| Size | 15.0" |
| Productor | AUO |
| Resolution | 1024×768 |
| Display scale | 4:3 (H:V) |
| Response | 35 ms |
| Luminance | 300 nits |
| Contrast Ratio | 1500:1 |
| Color | 262K/16.2M |
| Technology | a-Si TFT-LCD |
| Interface | LVDS |
| Drive-screen voltage | 3.3V |
| Backlight | WLED |
| Active Area | 304.128×228.096 mm |
| Outline | 326.50× 253.50×9.60 mm |
| Weight | 910g (Typ.) |
| Viewing Angle | 85/85/85/85(U/D/L/R) |
Product Specification
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 85 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.099×0.297 mm (H×V) |
| Pixel Pitch : | 0.297×0.297 mm (H×V) |
| Surface : | Antiglare, Hard coating (3H) |
| Bezel Area : | 307.2×231.1 mm (H×V) |
| Outline Dimension : | 326.5×253.5 mm (H×V) |
| Outline Depth : | 9.6 (Typ.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Display Mode : | MVA, Normally Black, Transmissive |
| Color Gamut : | 72% NTSC (CIE1931) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.300; Wy:0.325 |
| White Variation : | 1.33 (Max.)(5 points) |
| Vertical Frequency : | 60Hz |
| Reverse Scan : | Yes (180°) |
| Total Power Consumption : | 10.1W (Typ.) |
Warranty:
1. All panels’ grade is promised strictly same as original factory’s standard.
2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.
3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
4. ISO 9001 guarantee.
Competitive Advantage:
1. We are a leading vendor & distributor for the LCD panels for more than 6 years.
2. We got the ISO9001 quality management system certification.
3. We have our own sourcing line & agency for the hard-to-find & shortage LCD panel models.
4. We are the professional team for the LCD screen sourcing & international trade with 6-year experience.
5. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 1-3 working days.
6. 1-year warranty is offered.
7. All LCD Panel will be tested before shipment.
8. We are the vendor & distributor in LCD panel area already for 6 years. We own our professional & competitive LCD screen sourcing line.

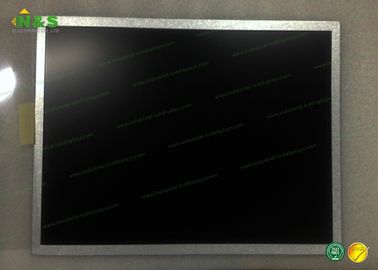

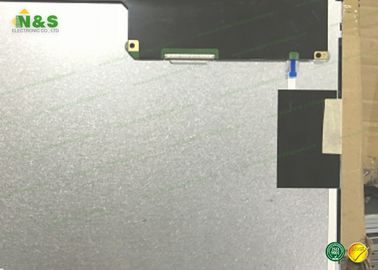

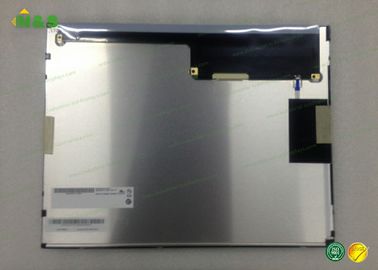

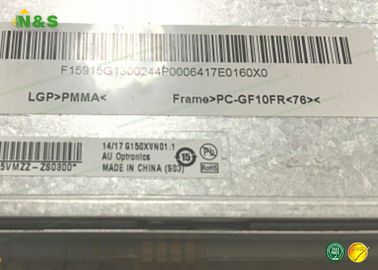

Details Picture for AUO G150XVN01.1
