Product Details:
|
| Surface: | Anti-Scatter | Brightness: | 320 Cd/m² (Typ.) |
|---|---|---|---|
| Aspect Ratio: | 16:10 (H:V) | Panel Size: | 9.4 Inch |
| Dot Resolution: | 1280(RGB)×800 (WXGA) | Touch Panel: | Embeded (Projected Capacitive Touch) |
| Contrast Ratio: | 600:1 (Typ.) | Display Colors: | 262K (6-bit) , CIE1931 50% |
| Highlight: | lg lcd display,lg replacement screen |
||

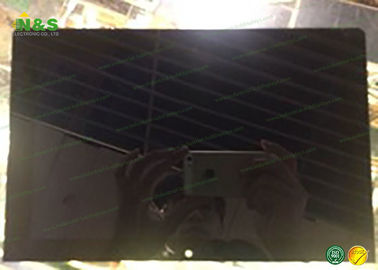

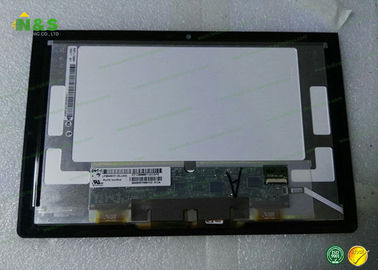

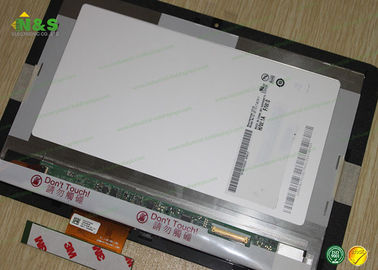

High Brightness LG LCD Panel, 9.4 inch LP094WX1-SLA2 Projected Capacitive Touch with 1280*800
Product Application:
Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
LG Display LP094WX1-SLA2 Mechanical Features:
Panel Size : 9.4 inch
Dot Resolution : 1280(RGB)×800 (WXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 161 PPI
Aspect Ratio : 16:10 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0525×0.1575 mm (H×V)
Pixel Pitch : 0.1575×0.1575 mm (H×V)
Weight : 235g (Max.)
Surface : Anti-Scatter
Active Area : 201.6×126 mm (H×V)
Bezel Area : 203.92×128.32 mm (H×V)
Outline Dimension : 237.7×161.45 mm (H×V)
Outline Depth : 4.65/6.5 (Typ./Max.) mm
Landscape or Portrait : Landscape type
Touch Panel : Embeded (Projected Capacitive Touch)
Panel Cover : With Cover Lens
Specifications :
| Panel Brand : | LG Display |
| Panel Model : | LP094WX1-SLA2 |
| Panel Type : | a-Si TFT-LCD , Assembly |
| Panel Size : | 9.4 inch |
| Resolution : | 1280(RGB)×800 , WXGA |
| Active Area : | 201.6×126 mm |
| Outline : | 237.7×161.45×6.5 mm |
| Surface : | Anti-Scatter |
| Brightness : | 320 cd/m² (Typ.) |
| Contrast Ratio : | 600:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 50% |
| Viewing Angle : | 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Signal Interface : | LVDS (1 ch, 6-bit) , 39 pins |
LG Display LP094WX1-SLA2 Backlight System:
| Lamp Position : | Edge light type |
| Lamp Type : | WLED |
| Lamp Amount : | 6 strings |
| Lamp Shape : | 6 strings |
| Lamp Life Time : | 15K(Min.) (Hours) |
| Lamps Power Consumption : | 1.74/1.80W (Typ./Max.) |
| Interface Type : | Included in panel signal interface |
| Lamp Driver Board : | No |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LH550WF3-SH01 | LG Display | 5.5" | 1080×1920 |
| LC320DXY-SHA3 | LG Display | 31.5" | 1366×768 |
| LC490EQL-SHA2 | LG Display | 49" | 3840×2160 |
| LC430EQL-SHA2 | LG Display | 43" | 3840×2160 |
| LC430DUY-SHA2 | LG Display | 43" | 1920×1080 |
| LC550EGY-SHM2 | LG Display | 55" | 3840×2160 |
| LC320DXJ-SFA9 | LG Display | 31.5" | 1366×768 |
| LH400WV3-SD06 | LG Display | 4.0" | 480×800 |
| LH300Q02-SD01 | LG Display | 3.0" | 240×320 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
