Product Details:
|
| Brightness: | 350 Cd/m² (Typ.) | Display Colors: | 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 60% |
|---|---|---|---|
| Frequency: | 60Hz | Response Time: | 5.7/2.3 (Typ.)(Tr/Td) |
| Viewing Angle: | 70/70/80/80(U/D/L/R) | Input Current: | 1.1A |
| Highlight: | auo display panel,auo lcd screen |
||

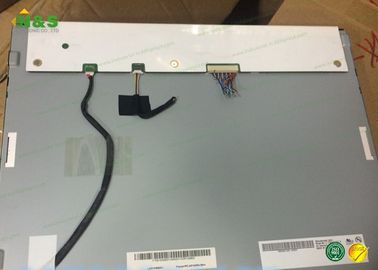

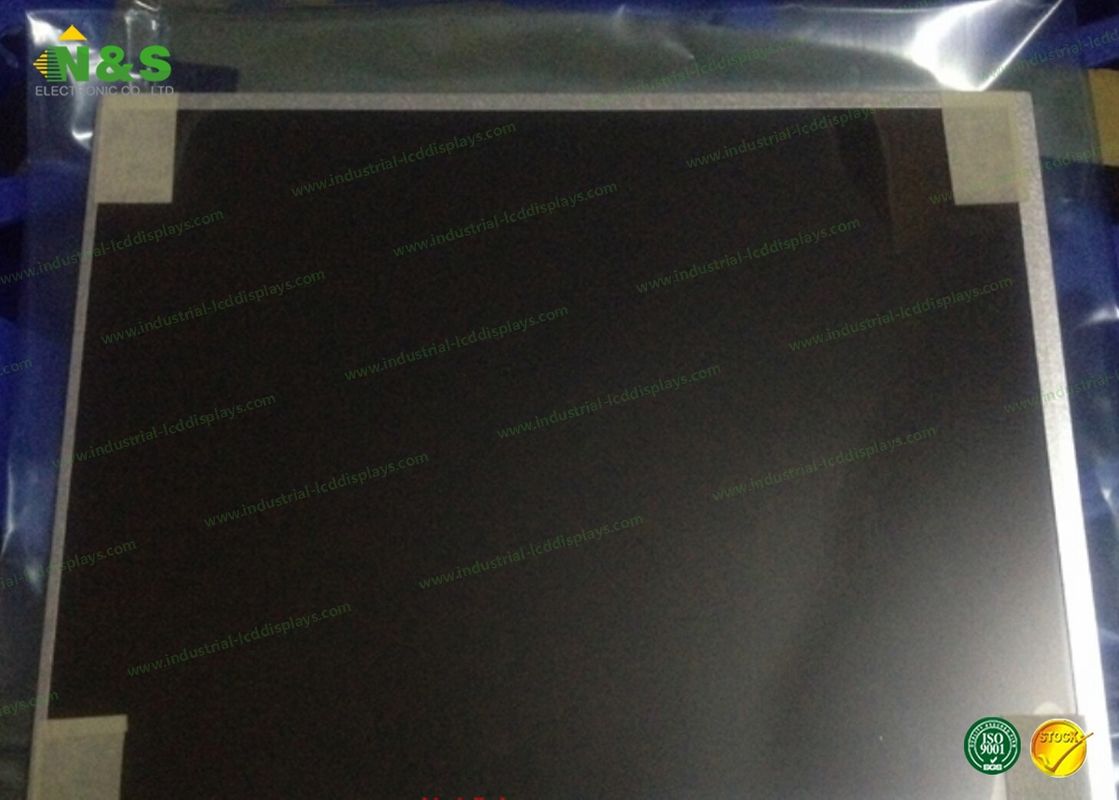

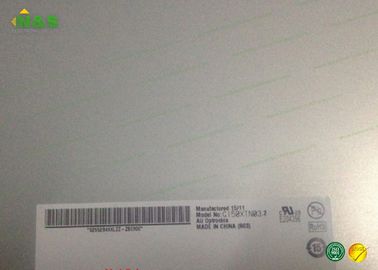

Original G150XTN03.2 AUO 15 inch LCD panel with Embedded LED Driver
Packaging & Delivery
AUO G150XTN03.2 General Features
| Panel Brand : | AUO |
| Panel Model : | G150XTN03.2 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 15.0 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 304.128×228.096 mm |
| Outline : | 326.5×253.5×12 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 700:1 (Typ.) |
| Display Colors : | 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 60% |
| Response Time : | 5.7/2.3 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
Structural Parameter
| Operation Temperature | 0 °C ~ 65 °C |
| Storage Temperature | -20°C ~ 65°C |
| Surface Technology | Antiglare ,Hard coating (3H) |
| Active Area | 304.128×228.096 mm |
| Display Area | 313.55×237.25 |
| Outline | 326.50× 253.50×12.00 mm |
| Touch Panel | Without |
| Lamp Position | Edge light type (Bottom side) |
| Backlight | WLED |
| Life Time of Lamp | 50K Hours |
| Driver of Backlight | Embedded (LED Driver) |
| Kind of Backlight Interface | Connector |
| Brand of Backlight Interface | E&T |
| Model of Backlight Interface | 3808K-F05N-02 |
| Quantity of Backlight Interface | 1 pcs |
| Pitch of Backlight Interface | 1.25 mm mm |
| Backlight Interface Define | LVDS-20P1C8B-135A |
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products.
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us,you can enjoy the real panels directly from original factory.
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them.
3. Quickly delivery:
*We also have international logistic center in Hongkong to support your batch orders to be delivered from HongKong directly. And we own various long-term cooperated express lines for much better service for our clients.
4.long-term partner:
* Products are sold to more than 150 countries. And big quantity for the long-term partners.
5. Super After-Sale service:
*One year warranty. Feel free to contact to us if there is any problems.
Products Details for AUO G150XTN03.2
