Product Details:
|
| Storage Temperature: | -30 ~ 70 °C | Outline Dimension: | 326.5×253.5 Mm (H×V) |
|---|---|---|---|
| Viewing Angle: | 45/45/25/45 (Typ.)(CR≥10) (L/R/U/D) | Display Color: | 262K/16.2M (6-bit / 6-bit + FRC) |
| Viewing Direction: | 6 O'clock | White Color Chromaticity: | Wx:0.313; Wy:0.329 |
| Lamp Position: | Edge Light Type | Interface Type: | Connector |
| Highlight: | tft lcd display,lcd display panel |
||
1024*768 15'' Innolux G150XGE-L06 TFT LCD Display for Industrial Application
Primary Competitive Advantages:
What is our advantage?
1. Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
2. Delivery Quantity: 50-100 cartons shipped by DHL every week
3. Supply Ability: 100 pcs Panels per day.
4. Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
5. Warranty: 12 months.
INNOLUX G150XGE-L06 General Features
| Active Area : | 304.1×228.1 mm |
| Outline : | 326.5×253.5×12.06 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 700:1 (Typ.) |
| Display Colors : | 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 60% |
| Response Time : | 5/11 (Typ.)(Tr/Td) |
| Viewing Angle : | 45/45/25/45 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED Embedded (LED Driver) |
| Signal Interface : | LVDS (1 ch, 6/8-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) |
INNOLUX G150XGE-L06 Mechanical Features
| Panel Size : | 15.0 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 85 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.099×0.297 mm (H×V) |
| Pixel Pitch : | 0.297×0.297 mm (H×V) |
| Weight : | 1.04/1.09Kgs (Typ./Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 304.1×228.1 mm (H×V) |
| Bezel Area : | 307.4×231.3 mm (H×V) |
| Outline Dimension : | 326.5×253.5 mm (H×V) |
| Outline Depth : | 11.56±0.5 mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |

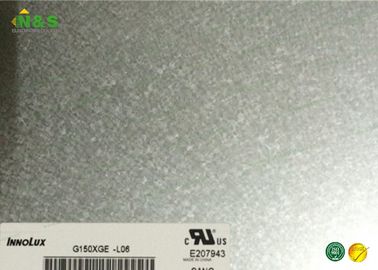

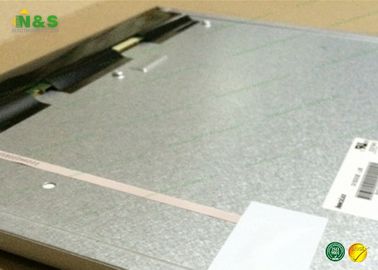

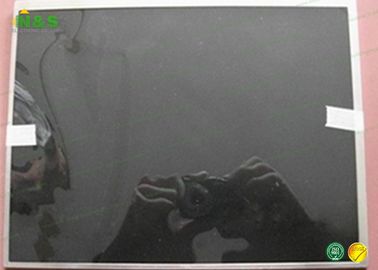

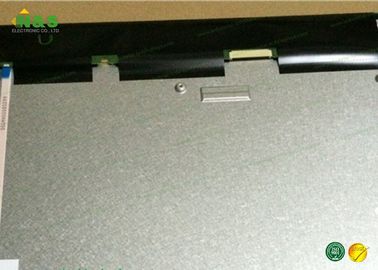

Products Photograph for INNOLUX G150XGE-L06
