Product Details:
|
| Dot Resolution: | 1024(RGB)×768 (XGA) | Color Gamut: | 55% NTSC (CIE1931) |
|---|---|---|---|
| Weight: | 835g (Typ.) | Pixel Configuration: | RGB Vertical Stripe |
| Total Power Consumption: | 10.8W (Typ.) | Lamp Position: | Edge Light Type |
| Operating Temperature: | -30 ~ 80 °C | Pixel Density: | 85 PPI |
| Highlight: | tft lcd display,innolux lcd screen |
||

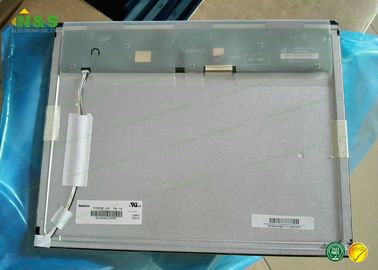

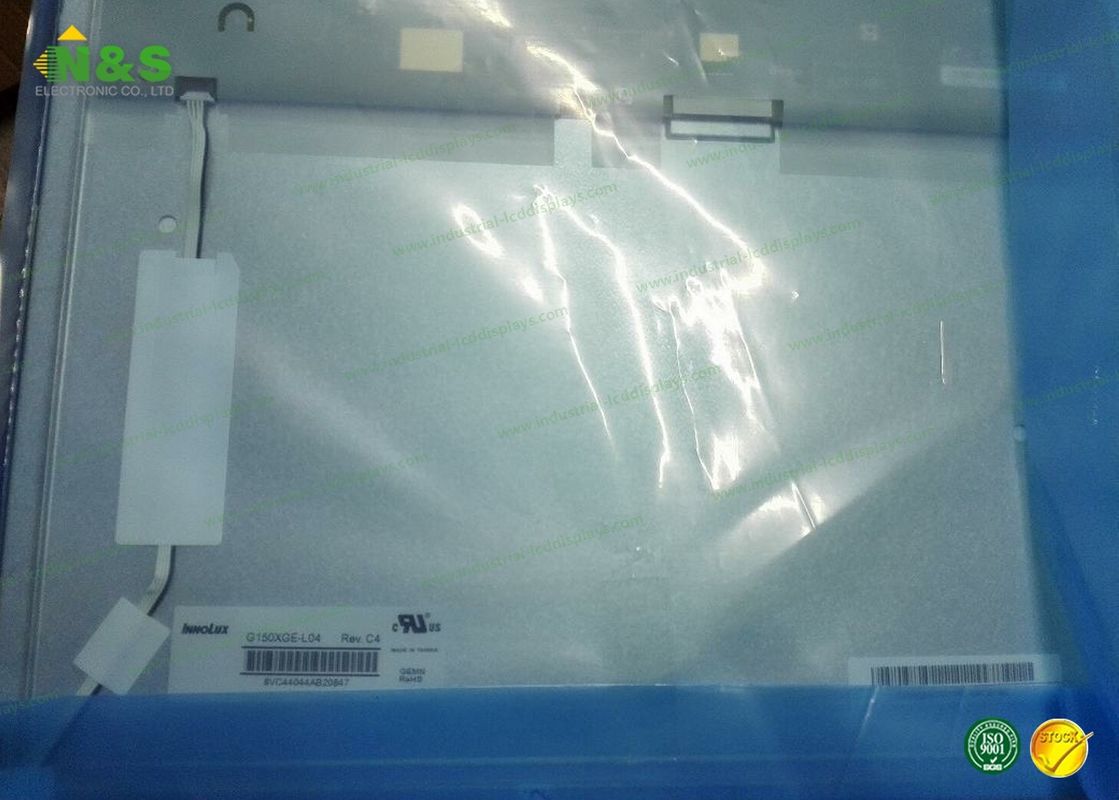

15'' CMI G150XGE-L04 Innolux LCD Panel with Wide Temperature and Viewing Angle
Quick Detail
| Panel Brand : | CHIMEI INNOLUX |
| Panel Model : | G150XGE-L04 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 15.0 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | TN, Normally White, Transmissive |
| Outline : | 326.5×253.5×12 mm |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 700:1 (Typ.) |
| Display Colors : | 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 55% |
| Weight : | 835g (Typ.) |
| Operating Temperature : | -30 ~ 80 °C |
| Storage Temperature : | -40 ~ 85 °C |
CHIMEI INNOLUX G150XGE-L04 Optical&Electronics Features
Optical Features:
Display Mode : TN, Normally White, Transmissive
Brightness : 400 cd/m² (Typ.)
Contrast Ratio : 700 : 1 (Typ.) (Transmissive)
Display Color : 262K/16.2M (6-bit / 6-bit + FRC)
Color Gamut : 55% NTSC (CIE1931)
Response Time : 8/17 (Typ.)(Tr/Td)
Viewing Angle : 80/80/70/70 (Typ.)(CR≥10) (L/R/U/D)
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.25/1.40 (Typ./Max.)(5 points)
Electronics Feature:
Vertical Frequency : 60Hz
Reverse Scan : No
Total Power Consumption : 10.8W (Typ.)
Return and Refund:
(1) Please notify us ASAP if the LCD Displays you received is defective. Please do not raise any dispute without communication.
(2) All LCD panels must be informed before returning. Defective item must be reported and returned within our warranty period.
(3) Returned item must have original package and be in good condition if possible, pls provide us the tracking number and returning reason.
Feedback:
(1) Your early confirmation will be highly appreciated after receiving the item.
(2) If you are satisfied with our item, pls contact to us also for other items, actually, we are not only own professional sourcing lines for AUO, LG, Samsung, Tianma, KOE, NEC, Hitachi, Optrex and more.
Our Promise for our LCD Panels:
You will get reply within 24 Hours and:
1 Year warranty
1 Day shipping
0 Return
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
Picture Show:
