Product Details:
|
| Panel Model: | LB060S01-RD02 | Panel Type: | EPD , EPD |
|---|---|---|---|
| Panel Size: | 6.0 Inch | Contrast Ratio: | 7:1 (Typ.)(Reflective) |
| Display Colors: | Grayscale (3-bit) | Viewing Angle: | 70/70/70/70 (Max.)(CR≥6) (L/R/U/D) |
| Signal Interface: | Parallel Data (8-bit) , 39 Pins | Input Voltage: | 3.3/22/-20V (Typ.)(VDD/VGG/VEE) |
| Highlight: | lg lcd display,lg replacement screen |
||
6.0 inch LB060S01-RD02 LG LCD Panel for E-Book Reader panel
| Panel Brand : | LG Display |
| Panel Model : | LB060S01-RD02 |
| Panel Type : | EPD , EPD |
| Panel Size : | 6.0 inch |
| Resolution : | 800×600 , SVGA |
| Active Area : | 122.4×90.6 mm |
| Outline : | 137.9×104.1 mm |
| Surface : | Antiglare |
| Contrast Ratio : | 7:1 (Typ.)(Reflective) |
| Display Colors : | Grayscale (3-bit) |
| Viewing Angle : | 70/70/70/70 (Max.)(CR≥6) (L/R/U/D) |
| Frequency : | 50Hz |
| Signal Interface : | Parallel Data (8-bit) , 39 pins |
| Input Voltage : | 3.3/22/-20V (Typ.)(VDD/VGG/VEE) |
We Can Do for You:
1) One-to-one service with efficient& professional support;
2) Protection of your design and all your private information;
3) We could supply hard-to-findLCD screen replacements;
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: Wecontinuously strive to find ways of reducing our production costs, and passing the savings to you.
| Panel Size : | 6.0 inch |
| Dot Resolution : | 800×600 (SVGA) |
| Pixel Configuration : | Rectangle |
| Pixel Density : | 166 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.153×0.151 mm (H×V) |
| Pixel Pitch : | 0.153×0.151 mm (H×V) |
| Weight : | 30±5g |
| Surface : | Antiglare |
| Active Area : | 122.4×90.6 mm (H×V) |
| Outline Dimension : | 137.9×104.1 mm (H×V) |
| Outline Depth : | 1.08±0.1 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LH550WF3-SH01 | LG Display | 5.5" | 1080×1920 |
| LC320DXY-SHA3 | LG Display | 31.5" | 1366×768 |
| LC490EQL-SHA2 | LG Display | 49" | 3840×2160 |
| LC430EQL-SHA2 | LG Display | 43" | 3840×2160 |
| LC430DUY-SHA2 | LG Display | 43" | 1920×1080 |
| LC550EGY-SHM2 | LG Display | 55" | 3840×2160 |
| LC320DXJ-SFA9 | LG Display | 31.5" | 1366×768 |
| LH400WV3-SD06 | LG Display | 4.0" | 480×800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

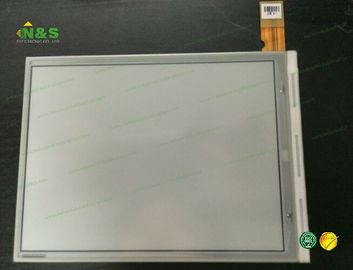

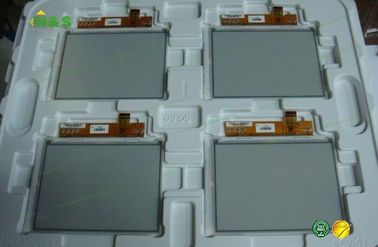

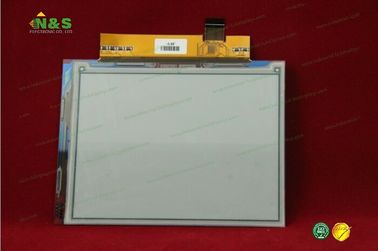

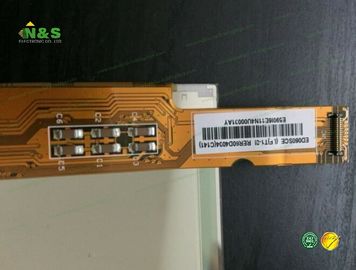

Details Pictures for LB060S01-RD02 LG LCD Panel
