Product Details:
|
| Panel Type: | A-Si TFT-LCD , Panel | Panel Size: | 12.1 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×600 , SVGA | Surface: | Antiglare, Hard Coating (3H) |
| Brightness: | 400 Cd/m² (Typ.) | Contrast Ratio: | 600:1 (Typ.) |
| Frequency: | 60Hz | Lamp Type: | 2 Pcs CCFL |
| Highlight: | auo display panel,auo lcd screen |
||
12.1 inch AUO LCD Screen Replacements G121SN01 V3 with 279*209*11 mm
| Panel Brand : | AUO |
| Panel Model : | G121SN01 V3 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 12.1 inch |
| Resolution : | 800(RGB)×600 , SVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 246×184.5 mm |
| Outline : | 279×209×11 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 600:1 (Typ.) |
| Display Colors : | 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 55% |
| Response Time : | 10/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 2 pcs CCFL |
| Signal Interface : | LVDS (1 ch, 6/8-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) |
| Panel Size : | 12.1 inch |
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 82 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.1025×0.3075 mm (H×V) |
| Pixel Pitch : | 0.3075×0.3075 mm (H×V) |
| Weight : | 660g (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 246×184.5 mm (H×V) |
| Bezel Area : | 249.05×188.3 mm (H×V) |
| Outline Dimension : | 279×209 mm (H×V) |
| Outline Depth : | 11.0 (Max.) mm |
| Holes & Brackets : | Face mounting holes (6-Φ3.4, 1-R1.7) on left and right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience inindustrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| M270HVN02.3 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.2 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.1 CELL | AUO | 27.0" | 1920×1080 |
| M270DTN01.0 CELL | AUO | 27.0" | 2560×1440 |
| T320HVN05.7 CELL | AUO | 31.5" | 1920×1080 |
| T320HVN05.4 CELL | AUO | 31.5" | 1920×1080 |
| T215HVN01.2 CELL | AUO | 21.5" | 1920×1080 |
| B070ATN02.0 CELL | AUO | 7.0" | 600×1024 |
| M238DAN01.3 CELL | AUO | 23.8" | 2560×1440 |
| B070AAN01.0 | AUO | 7.0" | 600×1024 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
FAQ
1. Q: Where can I get the price?
A:,A:,We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What is your terms of payment?
A: We accept T/T, Western Union, MoneyGram, Paypal.

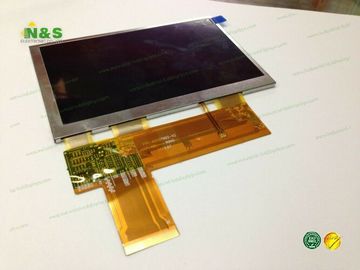

Details Pictures for G121SN01 V3
