Product Details:
|
| Frequency: | 60Hz | Viewing Angle: | 75/75/70/75 (Typ.)(CR≥10) (L/R/U/D) |
|---|---|---|---|
| Response Time: | 10/15 (Typ.)(Tr/Td) | Active Area: | 153.6×90 Mm |
| Outline: | 165.75×105.39×3.7 Mm | Panel Size: | 7.0 Inch |
| Panel Type: | A-Si TFT-LCD , Panel | Panel Model: | EJ070NA-01F |
| Highlight: | tft lcd display,chimei lcd display |
||
Normally White EJ070NA-01F Chimei LCD Panel with 1024*600 for Netbook PC panel
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 13 years experience in intelligent controller R&D and manufacturing.
6. Strong R&D term supports perfect customized projects.
7. Supplier of famous brands: Sun Rain, Phnix, Chigo, Rechi, Microwell SRO etc.
8. Fabulous after-sale service.
| Panel Brand : | CHIMEI INNOLUX |
| Panel Model : | EJ070NA-01F |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 7.0 inch |
| Resolution : | 1024(RGB)×600 , WSVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 153.6×90 mm |
| Outline : | 165.75×105.39×3.7 mm |
| Surface : | Glare (Haze 0%), Hard coating |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 700:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) |
| Response Time : | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 75/75/70/75 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 3S6P WLED |
| Signal Interface : | LVDS (1 ch, 8-bit) , 40 pins |
| Input Voltage : | 3.3/11.0/20.0-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Panel Size : | 7.0 inch |
| Dot Resolution : | 1024(RGB)×600 (WSVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 169 PPI |
| Aspect Ratio : | 17:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.050×0.150 mm (H×V) |
| Pixel Pitch : | 0.150×0.150 mm (H×V) |
| Weight : | 101g (Typ.) |
| Surface : | Glare (Haze 0%), Hard coating |
| Active Area : | 153.6×90 mm (H×V) |
| Bezel Area : | 156.4×92.8 mm (H×V) |
| Outline Dimension : | 165.75×105.39 mm (H×V) |
| Outline Depth : | 3.4±0.3 mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Packing & Delivery for our LCD Screen Panel Replacements:
1. Anti-static Bag Packing.
2. Anti-Shock Bubble Bag Packing
3. Foam and Hard Carton Packing
4. Picked up by forward and delivered by express services.
Below are our other LCD panels stock for your easy reference:
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| CLAG024G401 AX | CPT | 2.4" | 240×320 |
| CLAG032HA01A0 | CPT | 3.2" | 320×480 |
| CLAG030JB01A0 | CPT | 3.0" | 240×400 |
| CLAG028GE21A0 | CPT | 2.8" | 240×320 |
| CLAD035HA01 00XA | CPT | 3.5" | 320×480 |

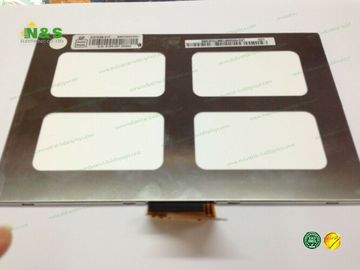

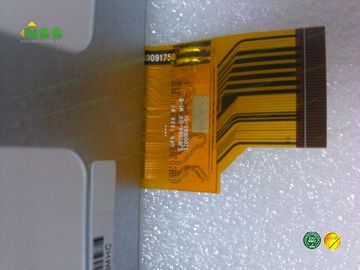

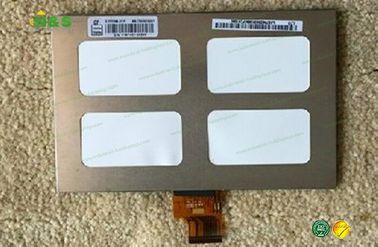

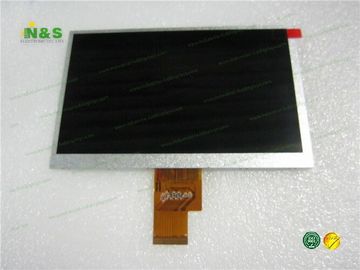

Details Pictures for EJ070NA-01F Chimei LCD Panel
