Product Details:
|
| Panel Size: | 7.0 Inch | Resolution: | 800(RGB)×480 , WVGA |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Outline: | 170.8×107.95×21.5 Mm |
| Surface: | Antiglare (Haze 40%), Hard Coating (3H) | Brightness: | 350 Cd/m² (Min.) |
| Viewing Angle: | 60/60/40/60 (Typ.)(CR≥10) (L/R/U/D) | Lamp Type: | 4S4P WLED |
| Highlight: | auo display panel,auo lcd screen |
||
7.0 inch 152.4*91.44 mm Normally White CLAA040JC06CW for Automotive Display panel
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience inindustrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
| Panel Brand : | AUO |
| Panel Model : | C070VW02 V1 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 7.0 inch |
| Resolution : | 800(RGB)×480 , WVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 152.4×91.44 mm |
| Outline : | 170.8×107.95×21.5 mm |
| Surface : | Antiglare (Haze 40%), Hard coating (3H) |
| Brightness : | 350 cd/m² (Min.) |
| Contrast Ratio : | 300:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 20/30 (Max.)(Tr/Td) |
| Viewing Angle : | 60/60/40/60 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 4S4P WLED |
| Signal Interface : | TTL (1 ch, 6-bit) , 98 pins |
| Input Voltage : | 3.3/9.8/15/-7V (Typ.)(VDD/AVDD/VGH/VGL) |
Excellent service on before-sale, on-sale and after-sale
1. We provide one year warranty, will provide the after-sale service for you if any quality problems.
2. Your inquiry related to our products or prices will be replied in 24 hours.
3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.
| Panel Size : | 7.0 inch |
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 133 PPI |
| Aspect Ratio : | 15:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0635×0.1905 mm (H×V) |
| Pixel Pitch : | 0.1905×0.1905 mm (H×V) |
| Weight : | 300±30g |
| Surface : | Antiglare (Haze 40%), Hard coating (3H) |
| Active Area : | 152.4×91.44 mm (H×V) |
| Bezel Area : | 153.6×92.64 mm (H×V) |
| Outline Dimension : | 170.8×107.95 mm (H×V) |
| Outline Depth : | 11.7/21.5 (Typ./Max.) mm |
| Holes & Brackets : | Side mount holes (4-Φ4) on left, right slugs |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Embeded (4-wire Resistive) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LH550WF3-SH01 | LG Display | 5.5" | 1080×1920 |
| LC320DXY-SHA3 | LG Display | 31.5" | 1366×768 |
| LC490EQL-SHA2 | LG Display | 49" | 3840×2160 |
| LC430EQL-SHA2 | LG Display | 43" | 3840×2160 |
| LC430DUY-SHA2 | LG Display | 43" | 1920×1080 |
| LC550EGY-SHM2 | LG Display | 55" | 3840×2160 |
| LC320DXJ-SFA9 | LG Display | 31.5" | 1366×768 |
| LH400WV3-SD06 | LG Display | 4.0" | 480×800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

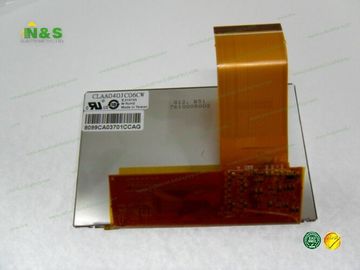

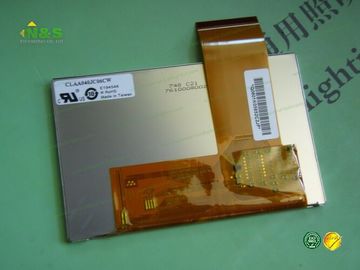

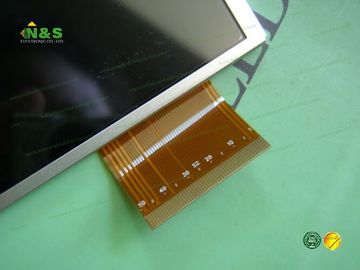

Details Pictures for CLAA040JC06CW LCD Screen Replacements
