Product Details:
|
| Signal Interface: | Parallel RGB (1 Ch, 8-bit) , 40 Pins | Lamp Type: | 6S2P WLED |
|---|---|---|---|
| Viewing Angle: | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) | Response Time: | 10/15 (Typ.)(Tr/Td) |
| Display Mode: | TN, Normally White, Transmissive | Resolution: | 480(RGB)×272 , WQVGA |
| Panel Size: | 5.0 Inch | Panel Type: | A-Si TFT-LCD , LCM |
| Highlight: | tft lcd display,lcd display panel |
||
5.0 inch AT050TN33 V.1 Innolux LCD Panel Display , Automotive tft lcd module
We Can Do for You:
1) One-to-one service with efficient& professional support;
2) Protection of your design and all your private information;
3) We could supply hard-to-findLCD screen replacements;
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: Wecontinuously strive to find ways of reducing our production costs, and passing the savings to you.
| Panel Brand : | INNOLUX |
| Panel Model : | AT050TN33 V.1 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 5.0 inch |
| Resolution : | 480(RGB)×272 , WQVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 110.88×62.832 mm |
| Outline : | 120.7×75.8×3.3 mm |
| Surface : | Antiglare |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 50% |
| Response Time : | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 6S2P WLED |
| Signal Interface : | Parallel RGB (1 ch, 8-bit) , 40 pins |
| Input Voltage : | 3.3V (Typ.) |
Company Advantage:

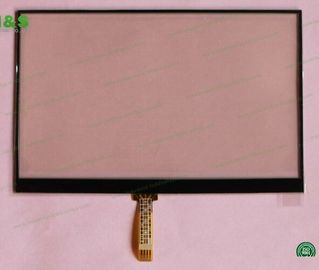

Kyocera offers touch panels for all of our TFT-LCD products, from 3.5" to 12.1". Our touch panel's provide high quality, reliability and durability. Factory installed with a full factory warranty.
Custom touch solutions are also available from our Value Added assembly plant contains but not only for LCD Screen of Innolux ,AUO, Samsung, LG & Sharp.
• Resistive touch panels
• Film touch or glass touch panel options
• Custom touch solutions
• Optical bond P-cap touch screen solutions
• On-cell touch
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 50% NTSC (CIE1931) |
| Response Time : | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.330 |
| White Variation : | 1.33/1.43 (Typ./Max.)(9 points) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| V850DK1-QS1 Rev.C8 | Innolux | 85" | 3840×2160 |
| V850DK1-QS1 Rev.C2 | Innolux | 85" | 3840×2160 |
| V650DJ4-QS5 Rev.M1 | Innolux | 65" | 3840×2160 |
| N080ICP-G01 CELL | Innolux | 8.0" | 800×1280 |
| DE080NA-01D | Innolux | 8.0" | 800×480 |
| AT080YN01 | Innolux | 8.0" | 1024×600 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

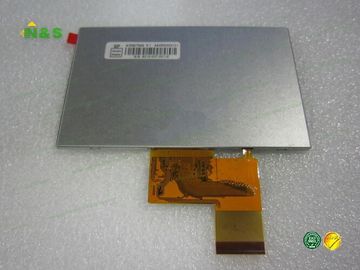

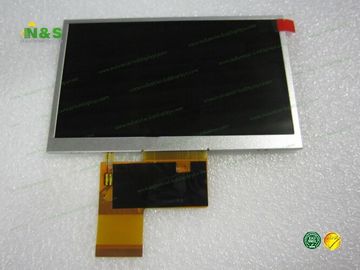

Details Pictures for AT050TN33 V.1 LCD Display Panel
