Product Details:
|
| Lamp Position: | Edge Light Type | Signal Class: | CMOS (1 Ch, 6-bit) |
|---|---|---|---|
| Lamps Power Consumption: | 2.8/3.2W (Typ./Max.) | White Variation: | 1.30 (Max.)(5 Points) |
| Brightness: | 700 Cd/m² (Typ.) | Holes & Brackets: | Rear Mounting Holes (4-Φ2.6) |
| Dot Resolution: | 640(RGB)×480 (VGA) | Panel Type: | A-Si TFT-LCD , Panel |
| Highlight: | auo lcd screen,auo lcd display |
||
5.7 inch High Contrast Ratio AUO G057VN01 V2 LCD with Antiglare, Hard coating (3H) Surface and WLED Backlight
Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products.
Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us,you can enjoy the real panels directly from original factory.
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them.
Quickly delivery:
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
Our Advantage:
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service:
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
General Features
| Resolution : | 640(RGB)×480 , VGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 115.2×86.4 mm |
| Outline : | 144×104.6×12.8 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Display Colors : | 262K (6-bit) , CIE1931 50% |
| Response Time : | 15/10 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/70/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED Embedded (LED Driver) |
| Signal Interface : | CMOS (1 ch, 6-bit) , 33 pins |
| Input Voltage : | 3.3V (Typ.) |
G057VN01 V2 Signal Interface
| Signal Category | TTL | |||||
| Signal Class | CMOS (1 ch, 6-bit) | |||||
| Input Voltage for Panel | 3.3V (Typ.) | |||||
| Input Current for Panel | 140/155mA (Typ./Max.) | |||||
| Panel Power Consumption | 0.5/0.55W (Typ./Max.) | |||||
| Voltage for Display Signals | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD | |||||
| Interface Type | Connector | |||||
| Signal Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| STARCONN | 089H33-000100-G2-R | 0.5 mm | 33 pins |
1 pcs |
DRGB-33P1C6B-010A | |
Product Photograph for G057VN01 V2

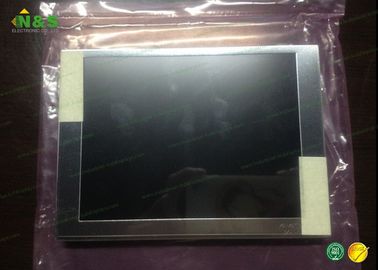

Positive Photograph

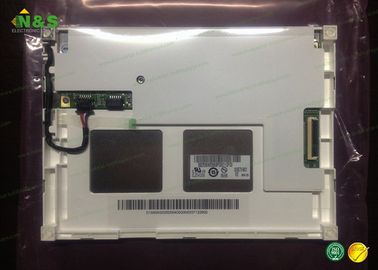

Backside Photograph
