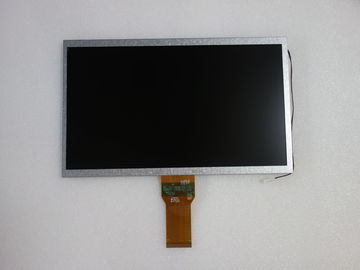

Product Details:
|
| Size: | 10.1 Inch | Resolution: | 1024×600 |
|---|---|---|---|
| Pixel Number: | 1024(RGB)×600 (WSVGA) | Arrangement: | RGB Vertical Stripe |
| Active Area(mm): | 222.72 × 125.28 (H×V) | Outline(mm): | 235 × 143 × 5.5 (H×V×D) |
| Bezel Area(mm): | 226.43 × 128.1 (H×V) | Treatment: | Antiglare, Hard Coating (3H) |
| Luminance: | 350 (Typ.)(cd/m²) | Viewing Angle: | 70/70/60/60 (Typ.)(CR≥10) |
| Highlight: | auo display panel,auo lcd screen |
||
1.AUO G101STN01.5 Mechanical Details
| Pixel Features : |
Resolution:1024(RGB)×600, WSVGA
Dot Pitch(mm):0.0725×0.2088 (H×V)
Pixel Format:RGB Vertical Stripe
Pixel Pitch(mm):0.2175×0.2088 (H×V)
|
|---|---|
| Mechanical Size : |
Active Area(mm):222.72(H) × 125.28(V)
Bezel Area(mm):226.43(H) × 128.1(V)
Outline Dim.(mm):235(H) × 143(V)
Depth(mm):5.0±0.5
|
| Outline Features : |
Form Style:Flat Rectangle
Shape Style:-
Aspect Ratio:16:9 (H:V)
Orientation:Landscape type
|
| Mounting : |
Without
|
| Other Spec : |
Weight:340g (Max.)
Treatment:Antiglare, Hard coating (3H)
|
2.AUO G101STN01.5 Optical Details
| Basic Information : |
Luminance(cd/m²)
350 (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Viewing Angle
70/70/60/60 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
-
Response(ms)
7/9 (Typ.)(Tr/Td)
|
|---|---|
| Color Performance : |
White Coordinate
Wx:0.310; Wy:0.330
Display Colors
262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Temperature
6638K
White Uniformity
1.25/1.33 (Typ./Max.)(5 points)
|
| 1931 Color Gamlt : |
NTSC Ratio
46%
sRGB
65% coverage
Adobe RGB
48% coverage
DCI-P3
48% coverage
Rec.2020
35% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
|
3.AUO G101STN01.5 Backlight Details
| Backlight Features : |
Type
WLED
Quantity
-
Position
Edge light type
Replacement
-
Shape
-
Life Time
15K(Min.) (Hours)
|
|---|---|
| Lamp Electrical : |
Voltage Supply
9.3/9.6V (Typ./Max.)
Current Supply
32.5mA (Typ.)
Consumption
2.50W (Typ.)
|
| Interface Features : |
Position
Type
Connector
|
| Interface Detail : |
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
JST
3.5 mm
2 pins
1 pcs
BLE-2PINS-AC
|
| Backlight Driver : |
No
|
