Product Details:
|
| Active Area: | 154.08×85.92 Mm | Outline: | 164.9×100×6 Mm |
|---|---|---|---|
| Surface: | Antiglare | Brightness: | 250 Cd/m² (Typ.) |
| Contrast Ratio: | 500:1 (Typ.) | Frequency: | 60Hz |
| Lamp Type: | 3S6P WLED | Signal Interface: | Parallel RGB (1 Ch, 6/8-bit) , 50 Pins |
| Highlight: | industrial touch screen display,industrial lcd panel |
||
164.9×100×6 mm Outline Industrial LCD Displays 3S6P WLEDLamp Type
Company Strength
1. ISO9001 certificated, Factory Direct Supplied
2. RoHS Compliant, Lead Free, Reach Compliant
3. Competitive Price and Short Lead-time
4. Professional Team with Rich Experiences in Design/Mfg/Quality Control
5. Small MOQ Support & Fast Response to Customers
6. Long Product Life Time
We Can Do for You
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Easy-to-install console, Open Frame chassis-mount display
• Slim dimensions enable better enclosure designs
• Multiple mounting options (100mm VESA mount and side brackets)
• All steel construction provides rugged frame for public use environments
• Two independent touch points (with Windows 7 OS)
• Improved power efficiency and reduced consumption
• TUV, CE, UL, CUL, FCC-B, RoHS, and IPX1 approvals
TIANMA TM070RDH11 General Features
| Panel Brand : | TIANMA |
| Panel Model : | TM070RDH11 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 7.0 inch |
| Resolution : | 800(RGB)×480 , WVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 154.08×85.92 mm |
| Outline : | 164.9×100×6 mm |
| Surface : | Antiglare |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 50% |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 3S6P WLED Without Driver |
| Signal Interface : | Parallel RGB (1 ch, 6/8-bit) , 50 pins |
| Input Voltage : | 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
TIANMA TM070RDH11 Mechanical Features
| Panel Size : | 7.0 inch |
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 134 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0642×0.1790 mm (H×V) |
| Pixel Pitch : | 0.1926×0.1790 mm (H×V) |
| Weight : | 160g |
| Surface : | Antiglare |
| Active Area : | 154.08×85.92 mm (H×V) |
| Bezel Area : | 157.08×89.39 mm (H×V) |
| Outline Dimension : | 164.9×100 mm (H×V) |
| Outline Depth : | 5.7±0.3 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |

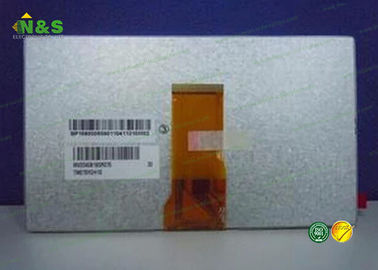

Details Pictures for TIANMA
