G190ETN01.4 19 Inch LCD Screen Anti Glare AUO Touch Panel 1280×1024

G190ETN01.4 19 Inch LCD Screen Anti Glare AUO Touch Panel 1280×1024
G190ETN01.4 19 Inch LCD Screen Anti Glare AUO Touch Panel 1280×1024

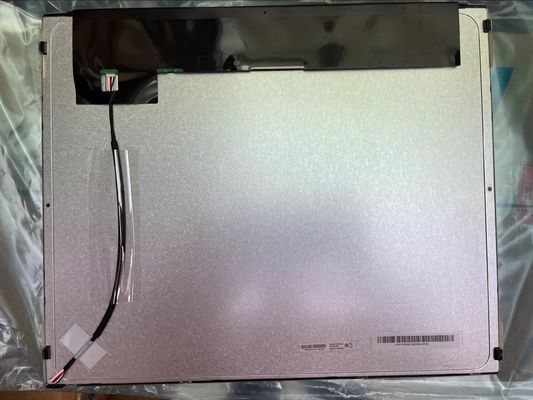

Large Image :  G190ETN01.4 19 Inch LCD Screen Anti Glare AUO Touch Panel 1280×1024

Product Details:
Place of Origin: KOREA
Brand Name: AUO
Certification: ISO9001
Model Number: G190ETN01.4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Contact Now

G190ETN01.4 19 Inch LCD Screen Anti Glare AUO Touch Panel 1280×1024

Description
Brand: AUO Touch Panel Model: G190ETN01.4
Diagonal Size: 19.0 Inch Type: A-Si TFT-LCD, LCM
Frame Rate: 60Hz Feature: Anti Glare
High Light:

AUO 19 Inch LCD Screen

,

Anti Glare AUO Touch Panel

,

G190ETN01.4 19 Inch LCD Screen

G190ETN01.4 AUO 19 inch  LCM 1280×1024 Touch screen


Panel ModelG190ETN01.4
Panel BrandAUO
Descritiona-Si TFT-LCD ,19.0 inch, 1280×1024
Panel Typea-Si TFT-LCD
Display ModeTN, Normally White, Transmissive
Active Area376.32×301.06 mm
Outline396×324×13.38 mm
SurfaceAntiglare, Hard coating (3H)
Contrast Ratio1000:1 (Typ.)
Display Colors16.7M (6-bit + Hi-FRC) , CIE1931 90%
Response Time7/3 (Typ.)(Tr/Td)
Viewing Angle85/85/80/80 (Typ.)(CR≥10) (L/R/U/D)
Frequency60Hz
Lamp Type4 strings WLED Embedded (LED Driver)
Signal InterfaceLVDS (2 ch, 8-bit) , 30 pins
Input Voltage5.0V (Typ.)



G190ETN01.4 Basic Information

Panel ModelG190ETN01.4
Panel BrandAUO
Descritiona-Si TFT-LCD ,19.0 inch, 1280×1024
Panel Typea-Si TFT-LCD
Operating Temperature-30 ~ 85 °C
Storage Temperature-30 ~ 85 °C



G190ETN01.4 Mechanical Features

Dot Resolution1280(RGB)×1024 (SXGA)
Pixel ConfigurationRGB Vertical Stripe
Pixel Density86 PPI
Aspect Ratio5:4 (H:V)
Form FactorFlat Rectangle Display
Dot Pitch0.098×0.294 mm (H×V)
Pixel Pitch0.294×0.294 mm (H×V)
Weight1.80Kgs (Typ.)
SurfaceAntiglare, Hard coating (3H)
Active Area376.32×301.06 mm (H×V)
Bezel Area379.72×304.46 mm (H×V)
Outline Dimension396×324 mm (H×V)
Outline Depth13.38 (Max.) mm
Holes & BracketsSide mounting holes (4-M3) on left, right bezel
Landscape or PortraitLandscape type
Touch PanelWithout


We also have other industrial LCD panels, pls contact to us for the further information
G190ETN01.4 19 Inch LCD Screen Anti Glare AUO Touch Panel 1280×1024 0

G190ETN01.4 19 Inch LCD Screen Anti Glare AUO Touch Panel 1280×1024 1

Application Of AUO LCD Panel

  1. Office Electronic Equipment: money counting machine, office phone set, copying mechine...
  2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens...
  3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale...
  4. Medical Devices: sphygmomanometer...
  5. Sports Equipment: running machine...
  6. Industrial Control Equipment: remote control, punched-card machine...
  7. Information Terminal Display: POS...
  8. Security Products: elevator controller, electronic indicator...




Advantage Of AUO LCD Panel

  1. We are professional LCD module manufacture in China with precise and advanced equipments.
  2. High quality Control with CE,ROHS and so on approved.
  3. More than 10 years of industry experience and involved main markets all over the world
  4. Dedicated and professional sales team will offer you 24 hours online and immediate service
  5. OEM and ODM support,12 months warranty for all of our products
  6. Our mission is to help our customers achieve success, then fulfill our both dreams
