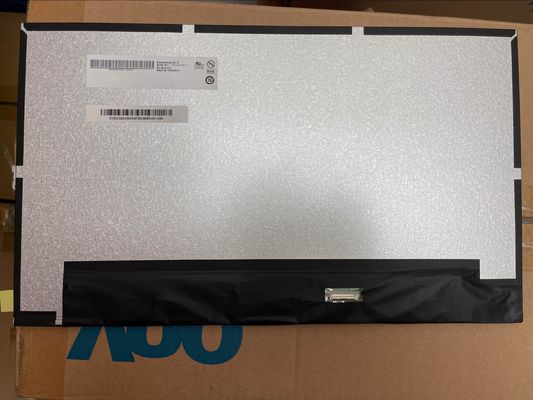

G230HAN01.1 AUO LCM 23 Inch LCD Panel RGB 1920×1080 FHD 95PPI Without Touchscreen

G230HAN01.1 AUO LCM 23 Inch LCD Panel RGB 1920×1080 FHD 95PPI Without Touchscreen
G230HAN01.1 AUO LCM 23 Inch LCD Panel RGB 1920×1080 FHD 95PPI Without Touchscreen

Large Image :  G230HAN01.1 AUO LCM 23 Inch LCD Panel RGB 1920×1080 FHD 95PPI Without Touchscreen

Product Details:
Place of Origin: TaiWan
Brand Name: AUO
Model Number: G230HAN01.1
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: pls contact us
Packaging Details: standard Packaging
Delivery Time: 5-8 work days
Payment Terms: Western Union,PAPLY,BANK TRANSFER
Supply Ability: 500
Contact Now

G230HAN01.1 AUO LCM 23 Inch LCD Panel RGB 1920×1080 FHD 95PPI Without Touchscreen

Description
Panel Brand: 23 Inch Lcd Panel Panel Model: G230HAN01.1
Panel Size: 23.0 Inch Panel Type: A-Si TFT-LCD, LCM
Resolution: 1920(RGB)×1080, FHD, 95PPI Touch Screen: Without
High Light:

FHD LCM 23 Inch Lcd Panel

,

RGB 23 Inch Lcd Panel

,

G230HAN01.1 AUO LCD Panel

G230HAN01.1 AUO 23 Inch Lcd Panel LCM 1920×1080 Without Touchscreen



G230HAN01.1 AUO 23" LCM 1920×1080 Without Touchscreen And Industrial,Medical Imaging,Gaming



AUO G230HAN01.1 Mechanical Details

Pixel Features :
Pixel Format
1920(RGB)×1080, FHD
Dot Pitch
0.0884×0.2652 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.2652×0.2652 mm (H×V) [95PPI]
Mechanical Size :
Display Area
509.184×286.416 mm (H×V)
Bezel Area
513.784×291.016 mm (H×V)
Outline Dim.
533.2×312 mm (H×V)
Outline Depth
10.5±0.5 mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style

Holes & Brackets :
Side mounting holes (4-M3) on left, right bezel
Other Features :
Weight
1.50±0.15Kgs
Surface
Antiglare
  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
  • G230HAN01.1 AUO LCM 23 Inch LCD Panel RGB 1920×1080 FHD 95PPI Without Touchscreen 0 Back to Top

AUO G230HAN01.1 Optical Details

Basic Information :
Brightness
300 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Optical Mode
AHVA, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
8/8 (Typ.)(Tr/Td); 14 (Typ.)(G to G) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
16.7M (8-bit)
Color Temperature
6485K
Uniformity
1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
71%
sRGB
97% coverage
Adobe RGB
74% coverage
DCI-P3
74% coverage
Rec.2020
53% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
