Product Details:
|
| Brand: | AUO | Model: | G101UAN01.0 |
|---|---|---|---|
| Diagonal Size: | 10.1 Inch | Type: | A-Si TFT-LCD, LCM |
| Pixel Format: | 1920(RGB)×1200 [WUXGA] 224PPI | Touch Panel: | Without |
| High Light: | 1920×1200 Full Hd Lcd Panel,G101UAN01.0,Full Hd Lcd Panel 10.1 |
||

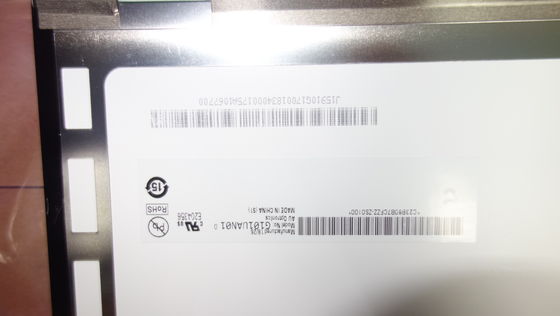

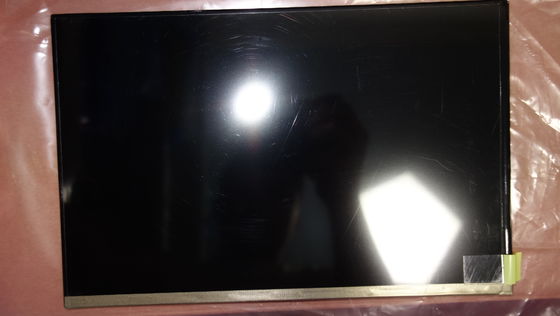

G101UAN01.0 LCM 1920×1200 Full Hd Lcd Panel 10.1 For Industrial
G101UAN01.0 AUO 10.1" LCM 1920×1200 Without Touch Panel And Industrial
| Pixel Features : | Resolution | 1920(RGB)×1200, WUXGA | Dot Pitch(mm) | 0.038×0.113 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.113×0.113 (H×V) [224PPI] | |
| Mechanical Size : | Active Area(mm) | 216.81(H) × 135.5(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 228.22(H) × 147.3(V) | Depth(mm) | 5.35 (Typ.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:10 (H:V) | Orientation | Landscape type | |
| Mounting : | Without | |||
| Other Spec : | Weight | 140g (Max.) | Treatment | Hard coating, Antireflection |
| Basic Information : | Luminance(cd/m²) | 380 (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10)  |
Display Mode | AHVA, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 25 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.43 (Max.)(5 points)  |
|
| 1931 Color Gamlt : | NTSC Ratio | 52% | sRGB | 71% coverage |
| Adobe RGB | 54% coverage | DCI-P3 | 54% coverage | |
| Rec.2020 | 39% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
