Product Details:
|
| Model Name: | G270ZAN01.2 | Screen Size: | 27.0 Inch |
|---|---|---|---|
| Manufacturer: | AUO | Screen Type: | LCM , A-Si TFT-LCD |
| Luminance: | 800 Cd/m² (Typ.) | Contrast Ratio: | 1000 : 1 (Typ.) (TM) |
| Refresh Rate: | 144Hz | Color Depth: | 16.7M 90% NTSC |
| High Light: | 144Hz LCM LCD Panel,16.7M 8bit LCD Panel,144Hz TFT LCD Panel |
||

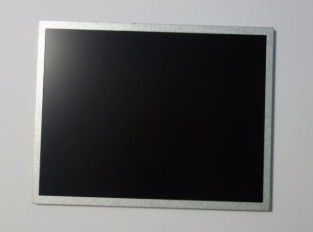

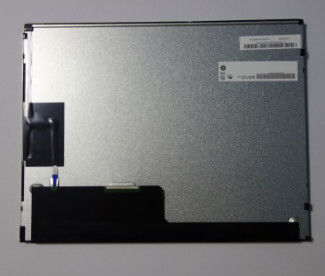

3840×2160 G270ZAN01.2 27 inch 144Hz LCM LCD Panel
Description Of AUO LCD Panel
AU Optronics Corp. (hereafter called AUO) G270ZAN01.2 is a 27.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without touch screen. G270ZAN01.2 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 596.16(W)×335.14(H) mm. As a AHVA, Normally Black, Transmissive LCM product, G270ZAN01.2 can provides 800 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 16 (Typ.)(Tr+Td) ms.
| Basic Information : | Brightness | 800 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | AHVA, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 16 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.18/1.25 (Typ./Max.)(9 points)  |
|
| 1931 Color Gamlt : | NTSC Ratio | 94% | sRGB | 100% coverage |
| Adobe RGB | 86% coverage | DCI-P3 | 91% coverage | |
| Rec.2020 | 69% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
| Pixel Features : | Pixel Format | 3840(RGB)×2160 [UHD] | Dot Pitch | 0.05175×0.15525 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.15525×0.15525 mm (H×V) [163PPI] | |
| Mechanical Size : | Display Area | 596.16×335.14 mm (H×V) | Bezel Area | - |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | - |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information
| H496TAN01.0 | AUO | 18.5" |
| H496TAN01.0 | AUO | 5.0" |
| H496TAN01.0 | AUO | 5.5" |
| H496TAN01.0 | AUO | 5.5" |
| H496TAN01.0 | AUO | 4.7" |
| M185XTN01.3 CELL | AUO | 6.0" |
| M185XTN01.3 CELL | AUO | 4.7" |
| M185XTN01.3 CELL | AUO | 5.5" |
| M185XTN01.3 CELL | AUO | 6.1" |
| M185XTN01.3 CELL | AUO | 6.0" |
| M185XTN01.3 CELL | AUO | 10.1" |
| M185XTN01.3 CELL | AUO | 5.0" |
| M185XTN01.3 CELL | AUO | 50" |
Application Of AUO LCD Panel G270ZAN01.2
1. clinical thermometer
2. sphygmomanometer
3. wire tester
4. remote control
5. punched-card machine
