Product Details:
|
| Panel Size: | 8.4" | Panel Model: | G084SN03 V3 |
|---|---|---|---|
| Panel Brand: | AUO | Panel Type: | A-Si TFT-LCD, LCM |
| Resolution: | 800(RGB)×600, SVGA, 119PPI | Signal Interface: | LVDS (1 Ch, 6/8-bit) , 20 Pins Connector |
| Display Area: | 170.4(W)×127.8(H) Mm | Pixel Format: | RGB Vertical Stripe |
| High Light: | 8.4" AUO LCD Panel,119PPI 8.4 inch LCD Panel,G084SN03 V3 |
||

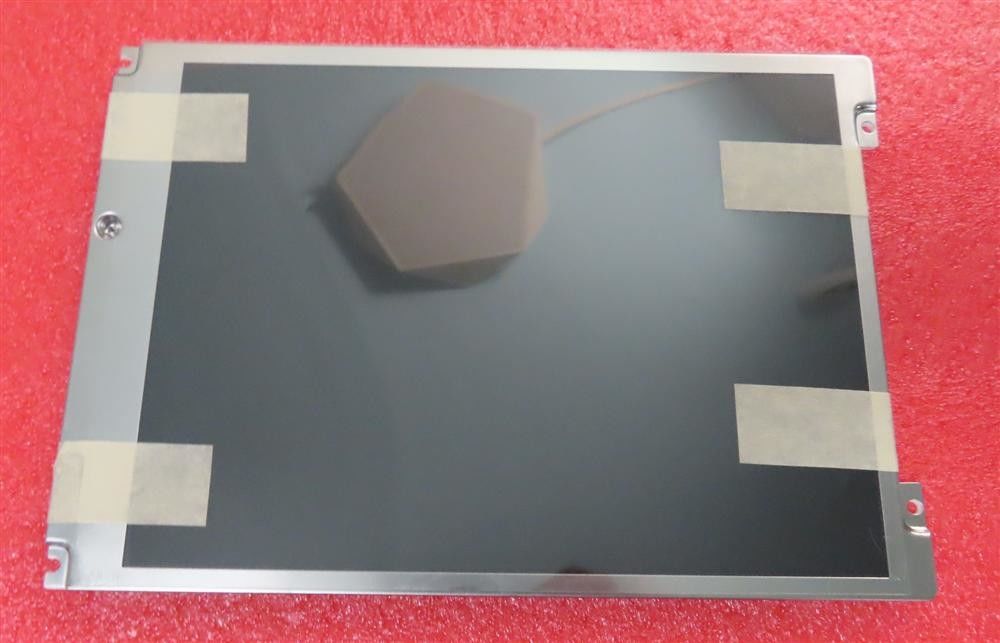

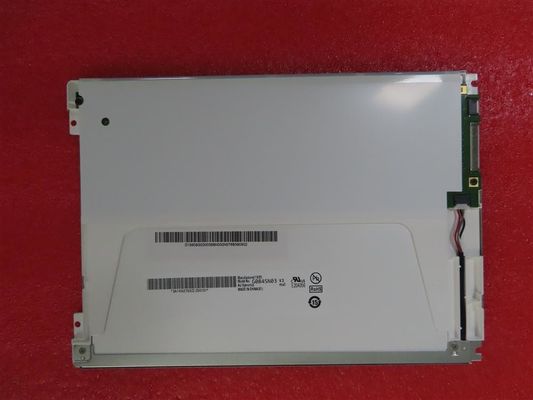

Industrial G084SN03 V3 800×600 8.4" AUO LCD Panel
Description Of AUO LCD Panel
According to datasheet with version of Ver2.3 which was released out on 1 16 2019, G084SN03 V3 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 170.4(W)×127.8(H) mm, outline size of 203(W)×142.5(H) mm, viewing area size of 173.8(W)×131.2(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of TBD. As a TN, Normally White, Transmissive LCM product, G084SN03 V3 can provides 250 cd/m² display brightness 600:1 transimissive contrast ratio, 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 20/10 (Typ.)(Tr/Td) ms.
Specification Of AUO LCD Panel
| Model | G084SN03 V3 |
| Operating Temperature | -20 ~ 70 °C |
| Resolution | 800(RGB)×600, SVGA |
| Surface | Antiglare, Hard coating (3H) |
| Bezel Area (W×H) | 173.8×131.2 mm |
| Dot Pitch (W×H) | 0.071×0.213 mm |
| Brightness | 250 cd/m² (Typ.) |
| Response Speed | 20/10 (Typ.)(Tr/Td) (ms) |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information
| H546TAN02.0 | AUO | 5.5" |
| H598TAN01.0 | AUO | 6.0" |
| H546DAN03.3 | AUO | 5.5" |
| H497DAN02.0 | AUO | 5.0" |
| H495TAN01.1 | AUO | 5.0" |
| H496TAN01.0 | AUO | 5.0" |
| H496TAN01.0 | AUO | 5.5" |
| H496TAN01.0 | AUO | 10.1" |
| H496TAN01.0 | AUO | 5.5" |
| H496TAN01.0 | AUO | 5.2" |
| H496TAN01.0 | AUO | 1.6" |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 270/330mA (Typ./Max.) | 3.3V (Typ.) | 0.9/1.2W (Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | LVDS (1 ch, 6/8-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment  |
| STM | MSB24013P20 | 1 pcs | 1.0 mm | 20 pins | LVDS-20P1C8B-140A | |
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 250 cd/m² (Typ.) | TN, Normally White, Transmissive | 600:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 80/80/80/60 (Typ.)(CR≥10) | - | 20/10 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6638K | 262K/16.2M (6-bit / 6-bit + FRC) | X:0.310; Y:0.330 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 48% | 68% | 51% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 50% | 36% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.33 (Typ.)(9 points) |
||
Application Of AUO LCD Panel
1. clinical thermometer
2. electronic weight scale
3. wire tester
4. digital watches
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
Please let us know your requirements on panels:
1), Size
2), Resolution
3), Brightness/Luminance
4), Viewing Angle
5), Light Source
6), Signal Interface: LVDS or eDP or V-by-One
or tell us the exact model # for reference.
we will quote the same model # or recommend alternatives when we couldn't provide the exact model or when we think there is a better choice for you.
