Product Details:
|
| Panel Brand: | AUO | Panel Model: | G185XW01 V1 |
|---|---|---|---|
| Panel Size: | 18.5" | Panel Type: | A-Si TFT-LCD , LCM |
| Resolution: | 1366(RGB)×768, WXGA, 84PPI | Pixel Format: | RGB Vertical Stripe |
| Display Area: | 409.8(W)×230.4(H) Mm | Touch Screen: | Without |
| High Light: | 18.5" AUO LCD Panel,0.300mm AUO LCD Panel,G185XW01 V1 |
||

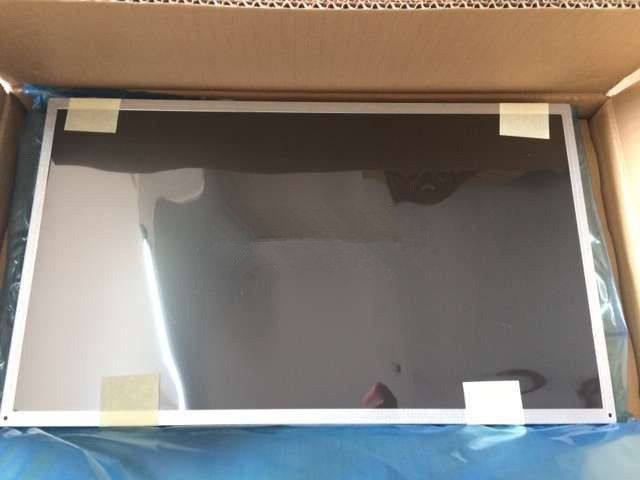

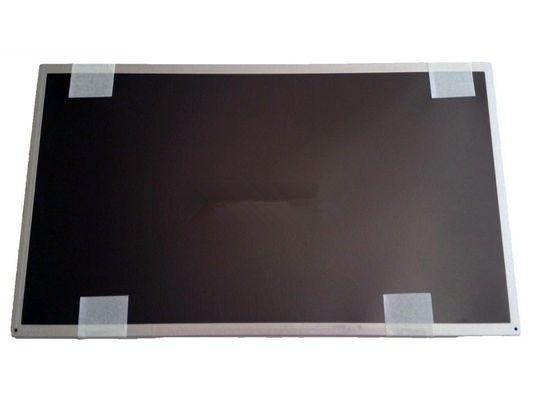

0.300mm Pixel Pitch G185XW01 V1 1366×768 18.5" AUO LCD Panel
Description Of AUO LCD Panel
G185XW01 V1 (Alias: G185XW01 V.1) is a 18.5 inch diagonal a-Si TFT-LCD display screen product from AUO, with a built-in WLED backlight, With LED Driver, without touch screen. On the basis of latest version datasheet Ver1.2 which was released out on 5 14 2013, G185XW01 V1 supports display 1366(RGB)×768 (WXGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe.
AUO G185XW01 V1 Mechanical Features
| Screen Size : | 18.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1366(RGB)×768, WXGA | RGB Vertical Stripe | 0.100×0.300 mm | 0.300×0.300 mm [84PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 409.8×230.4 mm | 413.4×234.0 mm | 430.4×254.6 mm | 16.4±0.5 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | - | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 1.82Kgs (Max.) | - | Antiglare, Hard coating (3H) | ||
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
AUO G185XW01 V1 Optical Features
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 300 cd/m² (Typ.) | TN, Normally White, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| - | 85/85/80/80 (Typ.)(CR≥10) |
3.5/1.5 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 16.7M (6-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 66% | 88% | 68% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 68% | 49% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.43/1.54 (Typ./Max.)(9 points) | ||
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information
| M270DAN01.1 CELL | AUO | 27.0" |
| T500QVN03.3 CELL | AUO | 50" |
| T500QVN03.0 CELL | AUO | 50" |
| H546DAN07.3 | AUO | 5.5" |
| M270HVN02.3 CELL | AUO | 27.0" |
| M270HVN02.2 CELL | AUO | 27.0" |
| M270HVN02.1 CELL | AUO | 27.0" |
| M270DTN01.0 CELL | AUO | 27.0" |
| T320HVN05.7 CELL | AUO | 31.5" |
| T320HVN05.4 CELL | AUO | 31.5" |
| T215HVN01.2 CELL | AUO | 21.5" |
| B070ATN02.0 CELL | AUO | 7.0" |
| M238DAN01.3 CELL | AUO | 23.8" |
| B070AAN01.0 | AUO | 7.0" |
Application Of AUO LCD Panel G121XN01 V0
1. Monitoring Equipment
2. Self-service terminal
3. On-board navigation
4. Medical Equipment
Pre-sales service :
1. Our team design and make solutions based on different requirements from different customers.
2. We provide 24-hours service,and every message you quote inquiry will be replied within 12 hours.
After-sales services:
1. We provide customer service through Skype, phone or email, supply you video or drawing to solve problems.
2. We provide remote control service through internet to achieve real time service, which will short time of solving problems.
3. We have professional engineer customer to keep fastly reply.
Please let us know your requirements on panels:
1), Size
2), Resolution
3), Brightness/Luminance
4), Viewing Angle
5), Light Source
6), Signal Interface: LVDS or eDP or V-by-One
or tell us the exact model # for reference.
we will quote the same model # or recommend alternatives when we couldn't provide the exact model or when we think there is a better choice for you.
