Product Details:
|
| Brand: | AUO | Model: | G220SW01 V0 |
|---|---|---|---|
| Diagonal Size: | 22.0 Inch | Type: | A-Si TFT-LCD, LCM |
| Pixel Format: | 1680(RGB)×1050 [WSXGA+] 90PPI | Configuration: | RGB Vertical Stripe |
| Active Area: | 473.76(H)×296.1(V) Mm | Touch Panel: | Without |
| High Light: | AUO Industrial LCD Panel,22" LCM Industrial LCD Panel,G220SW01 V0 |
||

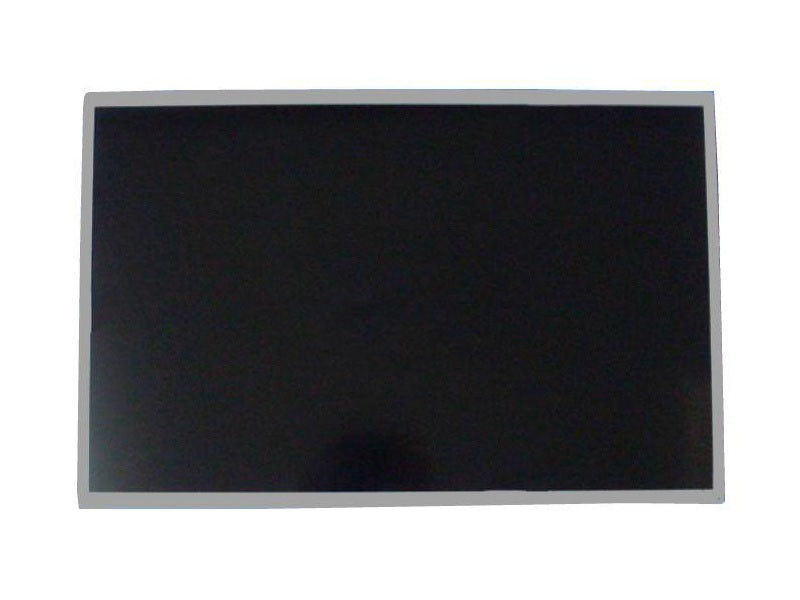

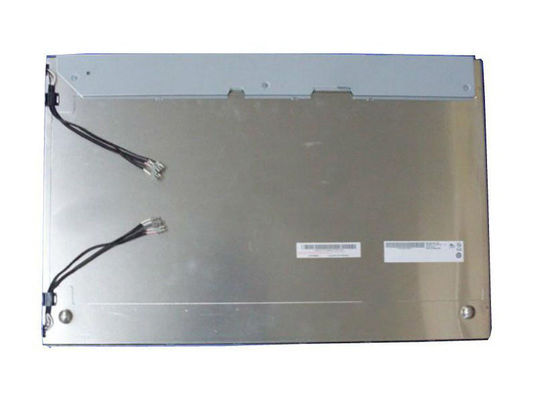

G220SW01 V0 22" LCM 1680×1050 AUO Industrial LCD Panel
Description Of AUO LCD Panel
AU Optronics Corp. (hereafter called AUO) G220SW01 V0 (Alias: G220SW01 V.0) is a 22.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated CCFL lighting system, without backlight driver, without touch screen.
AUO G220SW01 V0 Mechanical Details
| Pixel Features : | Pixel Format | 1680(RGB)×1050 [WSXGA+] | Dot Pitch | 0.094×0.282 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.282×0.282 mm (H×V) [90PPI] | |
| Mechanical Size : | Display Area | 473.76×296.1 mm (H×V) | Bezel Area | 477.7×300.1 mm (H×V) |
| Outline Dim. | 493.7×320.1 mm (H×V) | Outline Depth | 18.7 (Typ.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:10 (H:V) | Shape Style | - | |
| Holes & Brackets : | Side mounting holes (4-M3) | |||
| Other Features : | Weight | 2.95Kgs (Typ.) | Surface | Antiglare, Hard coating (3H) |
AUO G220SW01 V0 Optical Details
| Basic Information : | Brightness | 300 cd/m² (Typ.) | Contrast Ratio | 2000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | MVA, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 15/5 (Typ.)(Tr/Td); 8 (Typ)(G to G) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points)  |
|
| 1931 Color Gamlt : | NTSC Ratio | 68% | sRGB | 90% coverage |
| Adobe RGB | 71% coverage | DCI-P3 | 70% coverage | |
| Rec.2020 | 51% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information
| H496TAN01.0 | AUO | 31.5" |
| H496TAN01.0 | AUO | 19.5" |
| H496TAN01.0 | AUO | 7.5" |
| H496TAN01.0 | AUO | 18.5" |
| H496TAN01.0 | AUO | 5.0" |
| H496TAN01.0 | AUO | 5.5" |
| H496TAN01.0 | AUO | 5.5" |
| H496TAN01.0 | AUO | 4.7" |
| M185XTN01.3 CELL | AUO | 6.0" |
| M185XTN01.3 CELL | AUO | 4.7" |
| M185XTN01.3 CELL | AUO | 5.5" |
| M185XTN01.3 CELL | AUO | 6.1" |
| M185XTN01.3 CELL | AUO | 6.0" |
| M185XTN01.3 CELL | AUO | 10.1" |
Application Of AUO LCD Panel G220SW01 V0
1. Mobile Phone
2. Game Boy
3. MP5
4. Tablets
5. Tablets
6. Game Boy
Pre-sales service :
1. Our team design and make solutions based on different requirements from different customers.
2. We provide 24-hours service,and every message you quote inquiry will be replied within 12 hours.
After-sales services:
1. We provide customer service through Skype, phone or email, supply you video or drawing to solve problems.
2. We provide remote control service through internet to achieve real time service, which will short time of solving problems.
3. We have professional engineer customer to keep fastly reply.
Please let us know your requirements on panels:
1), Size
2), Resolution
3), Brightness/Luminance
4), Viewing Angle
5), Light Source
6), Signal Interface: LVDS or eDP or V-by-One
or tell us the exact model # for reference.
we will quote the same model # or recommend alternatives when we couldn't provide the exact model or when we think there is a better choice for you.
