Product Details:
|
| Panel Brand: | AUO | Panel Model: | G185HAN01.0 |
|---|---|---|---|
| Panel Size: | 18.5" | Pixel Format: | RGB Vertical Stripe |
| Panel Type: | A-Si TFT-LCD , LCM | Brightness: | 350 Cd/m² (Typ.) |
| Display Colors: | 16.7M 99% SRGB | Weight: | 1.20Kgs (Typ.) |
| Signal Interface: | LVDS (2 Ch, 8-bit) , 30 Pins Connector | Environment: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -20 ~ 70 °C |
| High Light: | G185HAN01.0 Auo LCD Screen,1.0 Mm Auo LCD Screen,OEM Auo LCD Screen |
||

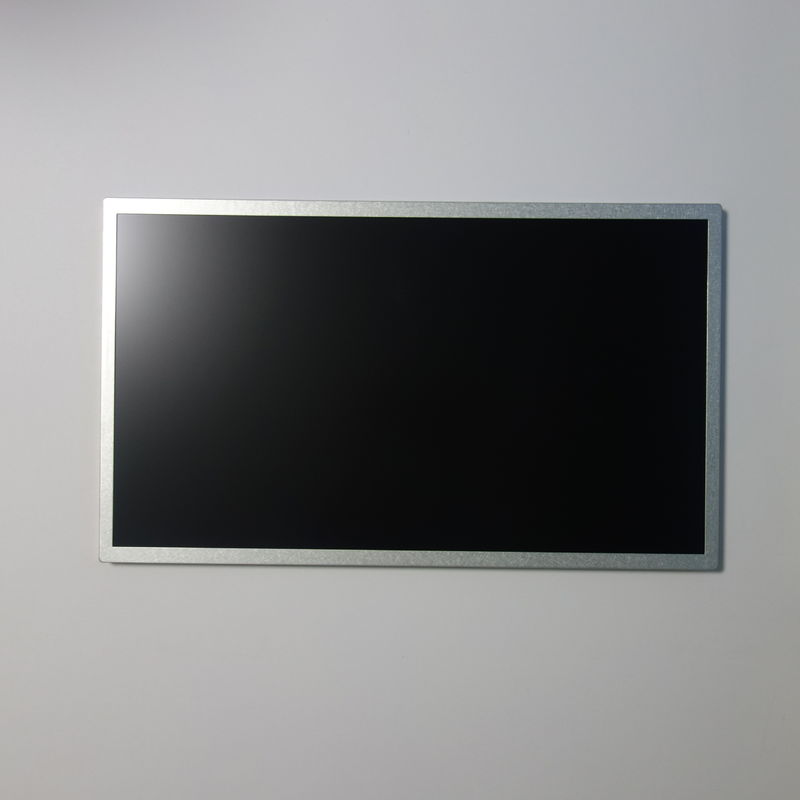

OEM 1.0 Mm Pin Pitch 16.7M G185HAN01.0 Auo LCD Screen
Description Of AUO LCD Panel
G185HAN01.0 can provides 350 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 10/10 (Typ.)(Tr/Td) ms.G185HAN01.0 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
Quick Details
| Model | G185HAN01.0 |
| Type | a-Si TFT-LCD , LCM |
| Operating Temperature | -20 ~ 70 °C |
| Panel Size : | 18.5 inch |
| Weight | 1.20Kgs (Typ.) |
| Interface | LVDS (2 ch, 8-bit) |
| Resolution | 1920(RGB)×1080, FHD |
| Color Amount | 16.7M (8-bit) |
| Backlight | WLED , 50K hours , With LED Driver |
| Luminance | 350 cd/m² (Typ.) |
| Signal Systerm : | LVDS (2 ch, 8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 5.0V (Typ.) | Current Input | 0.8/1.0A (Typ./Max.) | ||
| Consumption | 4.0/5.5W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position |  |
||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JAE | FI-XB30SSRLA-HF16 | 1.0 mm | 30 pins | 1 pcs | LVDS-30P2C8B-160A | |
| Basic Information : | Brightness | 350 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | AHVA, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 10/10 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.299; Wy:0.315 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 7502K | White Uniformity | 1.18/1.25 (Typ./Max.)(9 points)  |
|
| 1931 Color Gamlt : | NTSC Ratio | 73% | sRGB | 99% coverage |
| Adobe RGB | 76% coverage | DCI-P3 | 76% coverage | |
| Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information
| T320HVN05.4 CELL | AUO | 31.5" |
| T215HVN01.2 CELL | AUO | 21.5" |
| B070ATN02.0 CELL | AUO | 7.0" |
| M238DAN01.3 CELL | AUO | 23.8" |
| B070AAN01.0 | AUO | 7.0" |
| M238DAN01.1 CELL | AUO | 23.8" |
| M270DAN02.0 CELL | AUO | 27.0" |
| H598DAN03.0 | AUO | 6.0" |
| H546TAN02.3 | AUO | 5.5" |
| G173HW01 V0 CELL | AUO | 17.3" |
| T320HVN05.A CELL | AUO | 31.5" |
| B080EAN04.1 CELL | AUO | 8.0" |
| T500HVN08.8 CELL | AUO | 50" |
| H546DAN01.5 | AUO | 5.5" |
| H546DAN08.0 | AUO | 5.5" |
Application Of AUO LCD Panel G185HAN01.0
1. Gaming
2. GPS navigation systemGPS
3. Medical Equipment
4. Industrial Equipment
5. On-board navigation
6. Self-service terminal
Advantage Of AUO LCD Panel
1. We are professional LCD module manufacture in China with precise and advanced equipments.
2. High quality Control with CE,ROHS and so on approved.
3. More than 10 years of industry experience and involved main markets all over the world
4. Dedicated and professional sales team will offer you 24 hours online and immediate service
5. OEM and ODM support,12 months warranty for all of our products
6. Our mission is to help our customers achieve success, then fulfill our both dreams
Please let us know your requirements on panels:
1), Size
2), Resolution
3), Brightness/Luminance
4), Viewing Angle
5), Light Source
6), Signal Interface: LVDS or eDP or V-by-One
or tell us the exact model # for reference.
we will quote the same model # or recommend alternatives when we couldn't provide the exact model or when we think there is a better choice for you.
