Product Details:
|
| Model Name: | G240UAN01.0 | Screen Size: | 24.0 Inch |
|---|---|---|---|
| Manufacturer: | AUO | Screen Type: | LCM , A-Si TFT-LCD |
| Color Depth: | 1.07B 72% NTSC | Active Area(mm): | 518.4 × 324 (H×V) |
| Bezel Area(mm): | 521.4 × 327.0 (H×V) | Signal Type: | LVDS (2 Ch, 10-bit) , 51 Pins Connector |
| Backlight: | WLED , 50K Hours , With LED Driver | Max. Ratings: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| High Light: | G240UAN01.0 AUO LCD Panel,Medical Imaging AUO LCD Panel,24.0 inch LCM AUO LCD Panel |
||

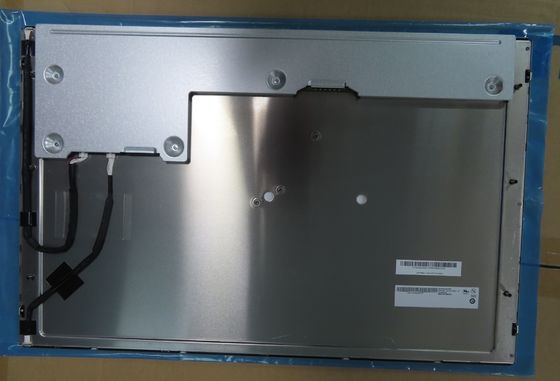

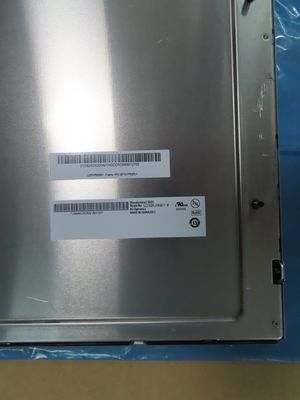

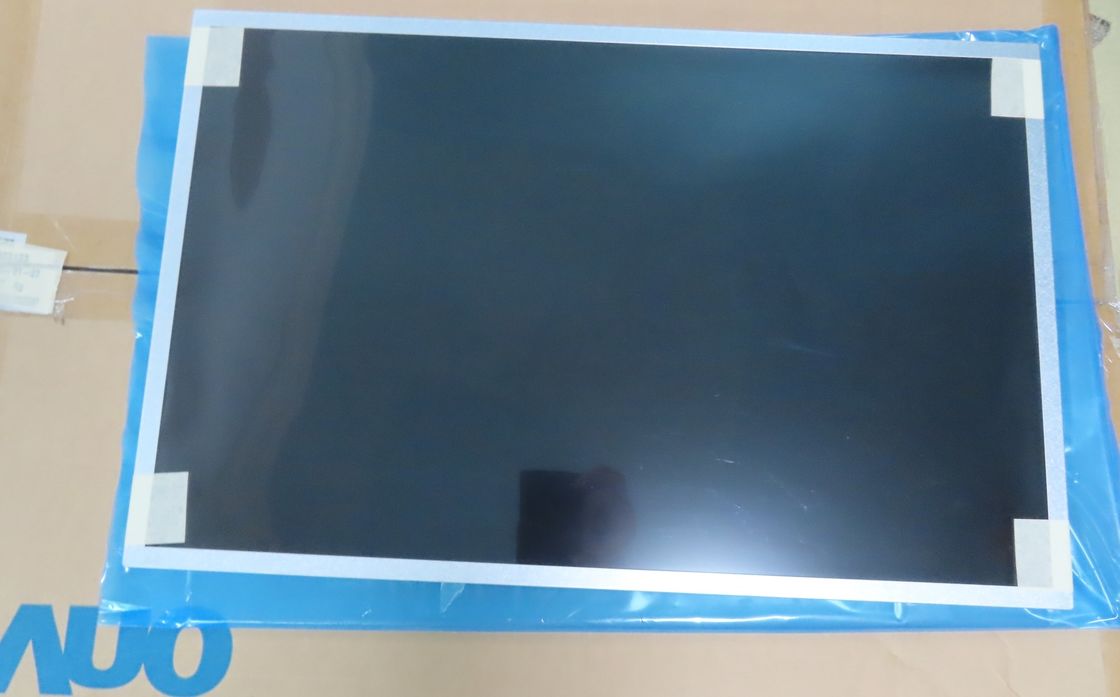

1920×1200 Medical Imaging G240UAN01.0 AUO LCD Panel
Description Of AUO LCD Panel
G240UAN01.0 utilizes LVDS (2 ch, 10-bit) as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0±1.2V. It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of G240UAN01.0 we strongly recommend that you should refer to datasheet listed on Panelook.com or contact with AUO.
Specification Of AUO LCD Panel
| Operating Temp. | 0 ~ 50 °C |
| Storage Temp. | -20 ~ 60 °C |
| Bezel Area | 521.4×327.0 mm (H×V) |
| Weight | 2.50Kgs (Typ.) |
| Color Numbers | 1.07B (8-bit + Hi-FRC) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Brightness | 900 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Signal Systerm : | LVDS (2 ch, 10-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 12.0±1.2V | Current Input | 0.4/0.6A (Typ./Max.) | ||
| Consumption | 4.8/7.2W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position |  |
||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JAE | FI-RE51S-HF-CM-R1500 | 0.5 mm | 51 pins | 1 pcs | ||
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 50K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | - | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 37.2/40.8V (Typ./Max.) | Current Input | 65mA (Typ.) | ||
| Consumption | 33.86/37.12W (Typ./Max.) |
|||||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | With LED Driver |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | S14B-PH-SM6-K-TB | 2.0 mm | 14 pins | 1 pcs | ||
| Driver Electrical : | Voltage Input | 24.0±1.2V | Current Input | 1.68/2.02A (Typ./Max.) | ||
| Consumption | 40.33/41.16W (Typ./Max.) | |||||
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information
| H497DAN01.1 | AUO | 5.0" |
| H650DAN01.0 | AUO | 6.4" |
| H572DAN01.0 | AUO | 5.7" |
| H546DAN01.2 | AUO | 5.5" |
| H499TAN03.0 | AUO | 5.0" |
| H572TAN01.0 | AUO | 5.7" |
| H466TAN02.3 | AUO | 4.7" |
| H446TAN03.1 | AUO | 4.5" |
| H446TAN03.0 | AUO | 4.5" |
| H546AAN01.0 | AUO | 5.5" |
| B070ATN01.0 CELL | AUO | 7.0" |
| A070SN02 V0 CELL | AUO | 7.0" |
| A050VVN01.2 | AUO | 5.0" |
| M320QAN01.1 CELL | AUO | 32.0" |
| M270HVN02.0 CELL | AUO | 27.0" |
| M270HTN01.1 CELL | AUO | 27.0" |
| B116XAN03.0 CELL | AUO | 11.6" |
| M215HTN01.3 CELL | AUO | 21.5" |
| M190PW01 V8 CELL | AUO | 19.0" |
| H380VW01 V0 | AUO | 3.8" |
Application Of AUO LCD Panel G240UAN01.0
1. Security Cameras
2. Cash register equipment
3. Industrial Equipment
4. Medical Equipment
5. Display Unit
