Product Details:
|
| Panel Brand: | AUO | Panel Model: | G270ZAN01.0 |
|---|---|---|---|
| Panel Size: | 27.0" | Panel Type: | A-Si TFT-LCD, LCM |
| Environment: | Operating Temp.: 0 ~ 40 °C ; Storage Temp.: -20 ~ 50 °C | Brightness: | 800 Cd/m² (Typ.) |
| Signal Interface: | EDP (2 Ch, 4 Lanes) , HBR1 (2.7G / Lane) , 51 Pins Connector | Display Colors: | 1.07B 94% NTSC |
| Outline Size: | 630(W)×368.2(H) ×23.4(D) Mm | Lamp Type: | WLED , 30K Hours , With LED Driver |
| High Light: | LCM Auo LCD Screen,27" auo lcd screen,G270ZAN01.0 |
||

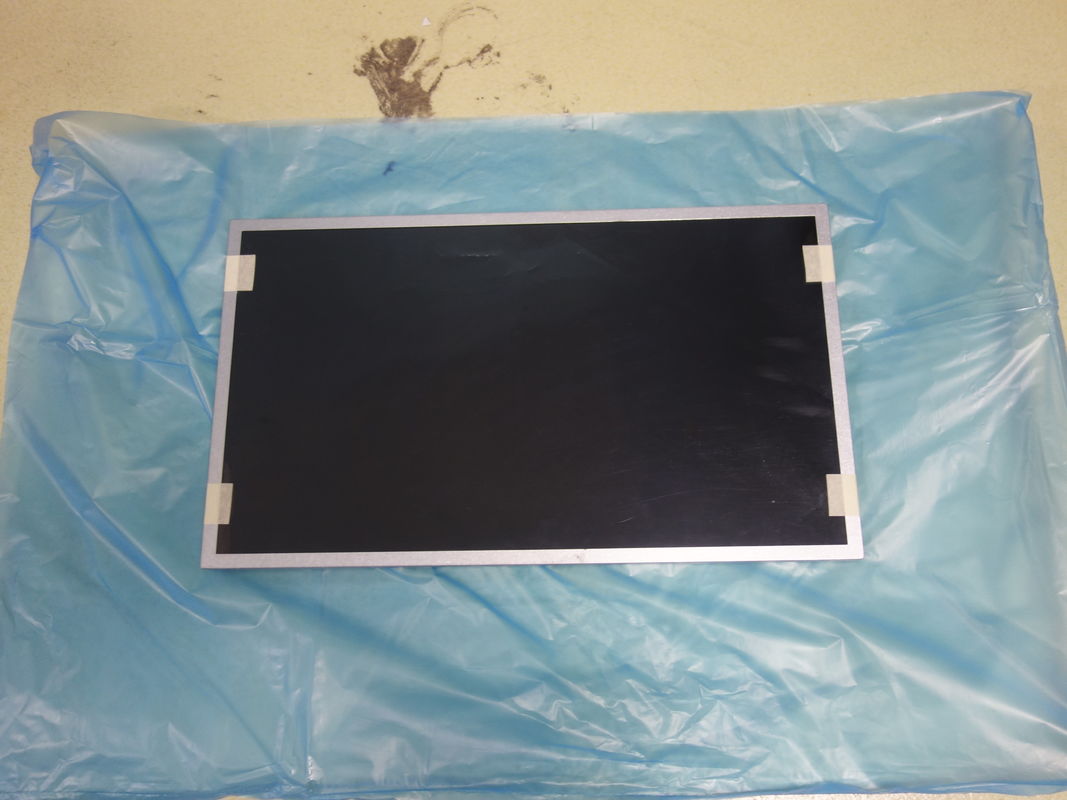

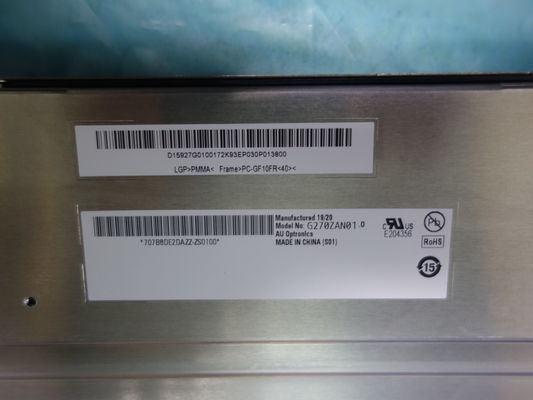

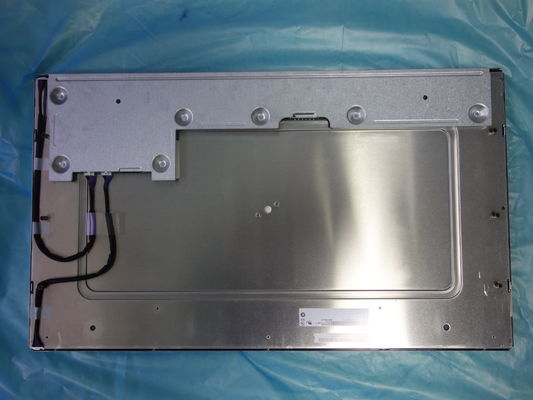

Outdoor 800 Cd/M² G270ZAN01.0 27" LCM Auo LCD Screen
Description Of AUO LCD Panel
G270ZAN01.0 is a 27.0 inch diagonal a-Si TFT-LCD display screen product from AUO, with a built-in WLED backlight, With LED Driver, without touch screen. On the basis of latest version datasheet Ver0.1 which was released out on 12 14 2016, G270ZAN01.0 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe.
AUO G270ZAN01.0 Optical Details
| Basic Information : | Luminance | 800 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 16/25 (Typ./Max.)(Tr+Td) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 1.07B (8-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.18/1.25 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 94% | sRGB | 100% coverage |
| Adobe RGB | 86% coverage | DCI-P3 | 91% coverage | |
| Rec.2020 | 69% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
| Signal Systerm : | eDP (2 ch, 4 Lanes), HBR1 (2.7G / lane) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 12.0V (Typ.) | Current Input | 0.9/1.08A (Typ./Max.) | ||
| Consumption | 10.8/11.88W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position |  |
||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JAE | FI-RTE51SZ-HF | 0.5 mm | 51 pins | 1 pcs | ||
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information
| T390XVN01.0 CELL | AUO | 39" |
| H497DAN01.0 | AUO | 5.0" |
| H498ATN01.1 | AUO | 5.0" |
| H466TAN01.1 | AUO | 4.7" |
| H446TAN01.1 | AUO | 4.5" |
| A070STN01.2 | AUO | 7.0" |
| M215HTN01.1 CELL | AUO | 21.5" |
| M195RTN01.0 CELL | AUO | 19.5" |
| H572TVN01.2 | AUO | 5.7" |
| H402VVN01.0 | AUO | 4.0" |
| M240HTN01.2 CELL | AUO | 24.0" |
| A050VVN01.3 | AUO | 5.0" |
| M195RTN01.1 CELL | AUO | 19.5" |
| H430VAN01.0 | AUO | 4.3" |
| T390HVN04.0 CELL | AUO | 39" |
Application Of AUO LCD Panel G270ZAN01.0
1. Industrial Equipment
2. On-board display
3. Security Monitoring System
4. Medical Equipment
