Product Details:
|
| Model Name: | LQ057Q3DC03 | Screen Size: | 5.7 Inch |
|---|---|---|---|
| Manufacturer: | Sharp | Screen Type: | LCM, A-Si TFT-LCD |
| Luminance: | 500 Cd/m² (Typ.) | Backlight: | WLED , 50K Hours , With LED Driver |
| Signal Type: | Parallel RGB (1 Ch, 6-bit) , 33 Pins Connector | Max. Ratings: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |
| High Light: | 0.5mm Pitch Sharp LCD Panel,LQ057Q3DC03,5.7" LCM Sharp Panel |
||

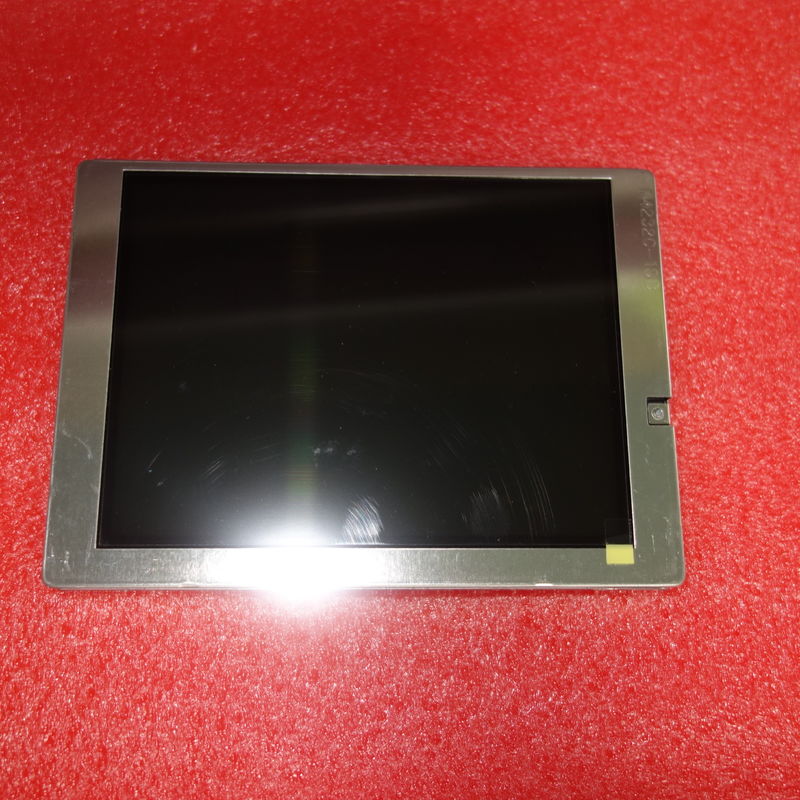

LQ057Q3DC03 5.7" LCM 320×240 0.5mm Pitch Sharp LCD Panel
Description Of Sharp LCD Panel
LQ057Q3DC03 is a 5.7 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. Based on datasheet with version of LD-23Y07B which was released out on 12 26 2011, LQ057Q3DC03 supports display 320×240(RGB) (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Horizontal Stripe.
| Pixel Features : | Resolution | 320×240(RGB), QVGA | Dot Pitch(mm) | 0.360×0.120 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Horizontal Stripe | Pixel Pitch(mm) | 0.360×0.360 (H×V) [70PPI] | |
| Mechanical Size : | Active Area(mm) | 115.2(H) × 86.4(V) | Bezel Area(mm) | 121.0(H) × 92.2(V) |
| Outline Dim.(mm) | 144(H) × 104.6(V) | Depth(mm) | 12.3±0.5 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | - |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Rear mounting holes (4-Φ2.6) | |||
| Other Spec : | Weight | 210g (Max.) | Treatment | Glare (Haze 0%), Hard coating (2H) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 10/30mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Signal Type : | Parallel RGB (1 ch, 6-bit) | Signal Voltage | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration  |
| HRS | FH12-33S-0.5SH(55) | 1 pcs | 33 pins | 0.5 mm | DRGB-33P1C6B-015A | |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information
| LQ315D1EG02 | SHARP | 31.5" |
| JE0DZ1C0093 | SHARP | 60" |
| LK460D3FZ10 | SHARP | 46" |
| LQ0DZC0128 | SHARP | 31.5" |
| LQ0DASA469 | SHARP | 4.7" |
| LQ133M1JW08A | SHARP | 13.3" |
| LK315T3HC1K | SHARP | 31.5" |
| LQ055T3SX04 | SHARP | 5.5" |
| LQ079L1SX06 | SHARP | 7.9" |
| LQ079L1SX04 | SHARP | 7.9" |
| LQ133M1JW08 | SHARP | 13.3" |
| LQ156D1JX02 | SHARP | 15.6" |
| LQ156Z1JW01 | SHARP | 15.6" |
Application Of Sharp LCD Panel LQ057Q3DC03
1. All kinds of industrial control equipment
2. Medical Equipment
3. electronic weight scale
4. digital watches
