Product Details:
|
| Size: | 8.4 Inch | Resolution: | 640×480 |
|---|---|---|---|
| Brightness: | 800 | C/R: | 1000:1 |
| View Angle: | 80/80/80/80 | Colors: | 262K 40% NTSC |
| Backlight: | WLED | Signal Interface: | CMOS (1 Ch, 6-bit) , 31 Pins Connector |
| Lamp Type: | 9S4P WLED , 50K Hours , Without Driver | Input Voltage: | 3.3/5.0V (Typ.)(VCC) |
| Touch Screen: | Without | ||
| Highlight: | 8.4 Inch TFT LCD Panel,NL6448BC26-20F,9S4P WLED TFT LCD Panel |
||

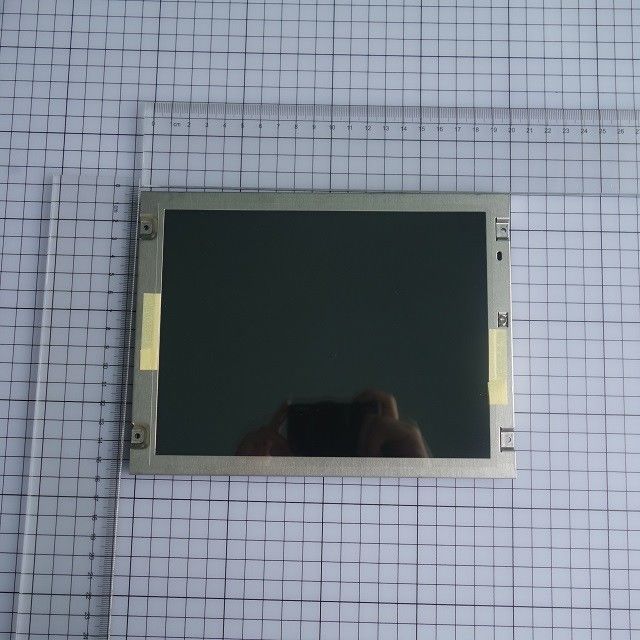

9S4P WLED Backlight NL6448BC26-20F 8.4 Inch TFT LCD Panel
1.NL6448BC26-20F Mechanical Details:
| Pixel Features : | Number of Pixel | 640(RGB)×480 [VGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.089×0.267 mm | Pixel Pitch(W×H) | 0.267×0.267 mm [95PPI] | |
| Physical Size : | Active Viewing | 170.88(W)×128.16(H) mm | Overall Dim. | 200(W)×152(H) mm |
| Bezel Opening | 174.0(W)×131.4(H) mm | Overall Depth | 8.2±0.5 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape / Portrait |
| Aspect Ratio(W:H) | 4:3 | Shape Style | - | |
| Fixation : | Face mounting holes (4-Ф2.8) on left, right bezel | |||
| Other Detail : | Mass | 330/350g (Typ./Max.) | Surface | Clear, Hard coating (3H) |
2.NL6448BC26-20F Optical Details:
| Basic Information : | Luminance | 800 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | - | Response Speed | 3/15 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.40 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 40% | sRGB | 56% coverage |
| Adobe RGB | 42% coverage | DCI-P3 | 42% coverage | |
| Rec.2020 | 30% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
3.NL6448BC26-20F Lightting Details:
| Lamp Features: | Lamp Shape | 4 strings | Lamp Type | WLED | Position | Edge light type (Top side) |
|---|---|---|---|---|---|---|
| Exchange | Replaceable (84LHS12) | Amount | 9S4P | Life | 50K(Typ.) (Hours) | |
| Lamp Electrical : | Input Current | 25/27.5mA (Typ./Max.) | Input Voltage | 29.7/34.2V (Typ./Max.) | ||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | SM08B-SRSS-TB | 1 pcs | 1.0 mm | 8 pins | BLE-8PINS-ACACACAC | |
| Backlight Driver : | No | |||||
4.NL6448BC26-20F Interface Details:
| Signal Electrical : | Input Current | 280/180mA (Typ.)(ICC) | Input Voltage | 3.3/5.0V (Typ.)(VCC) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | CMOS (1 ch, 6-bit) | |||
| Logic Voltage for Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | DF9C-31P-1V | 1 pcs | 1.0 mm | 31 pins | DRGB-31P1C6B-010F | |
